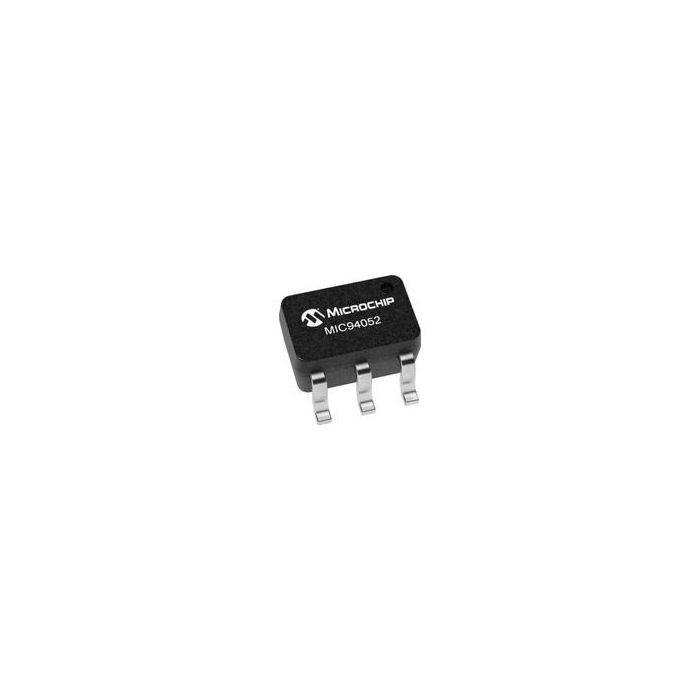

MIC94052YC6-TR
| Do pobrania | Download |
|---|---|
| Main description | Trans MOSFET P-CH 6V 2A 6-Pin SC-70 T/R |
Trans MOSFET P-CH 6V 2A 6-Pin SC-70 T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 2
- Inventory 9
- PCNs 59
- GIDEP-Alerts 2
- MaskPart MIC94052YC6%
- IntroductionDate Jul 01, 2002
Parametry
- Category Small Signal
- Channel Mode Enhancement
- Channel Type P
- Configuration Single Quad Drain
- Material N/A
- Maximum Continuous Drain Current (A) 2
- Maximum Continuous Drain Current @ Temperature (A) 1.4@Ta=85C
- Maximum Drain Source Resistance (mOhm) 84@4.5V
- Maximum Drain Source Resistance @ Vgs (mOhm) 84@4.5V|110@3.6V|130@2.5V|180@1.8V
- Maximum Drain Source Voltage (V) 6
- Maximum Gate Source Voltage (V) -6
- Maximum Gate Threshold Voltage (V) 1.2
- Maximum Junction Ambient Thermal Resistance 240°C/W
- Maximum Junction Case Thermal Resistance N/A
- Maximum Power Dissipation (mW) 270@Ta=85C
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -55
- Number of Elements per Chip 1
- Supplier Temperature Grade N/A
- Typical Drain Source Resistance @ 125°C (mOhm) N/A
- Typical Drain Source Resistance @ 25°C (mOhm) 70@4.5V|76@3.6V|92@2.5V|125@1.8V
- Typical Fall Time (ns) 20
- Typical Forward Transconductance (S) N/A
- Typical Gate Charge @ 10V (nC) N/A
- Typical Gate Charge @ Vgs (nC) N/A
- Typical Gate Resistance (Ohm) N/A
- Typical Gate to Drain Charge (nC) N/A
- Typical Gate to Source Charge (nC) N/A
- Typical Input Capacitance @ Vds (pF) N/A
- Typical Output Capacitance (pF) N/A
- Typical Reverse Recovery Charge (nC) N/A
- Typical Rise Time (ns) 15
- Typical Switch Charge (nC) N/A
- Typical Turn-Off Delay Time (ns) 60
- Typical Turn-On Delay Time (ns) 15
