MIC841LYMT T5
| Do pobrania | Download |
|---|---|
| Main description | Comparator Single 5.5V 6-Pin TDFN EP |

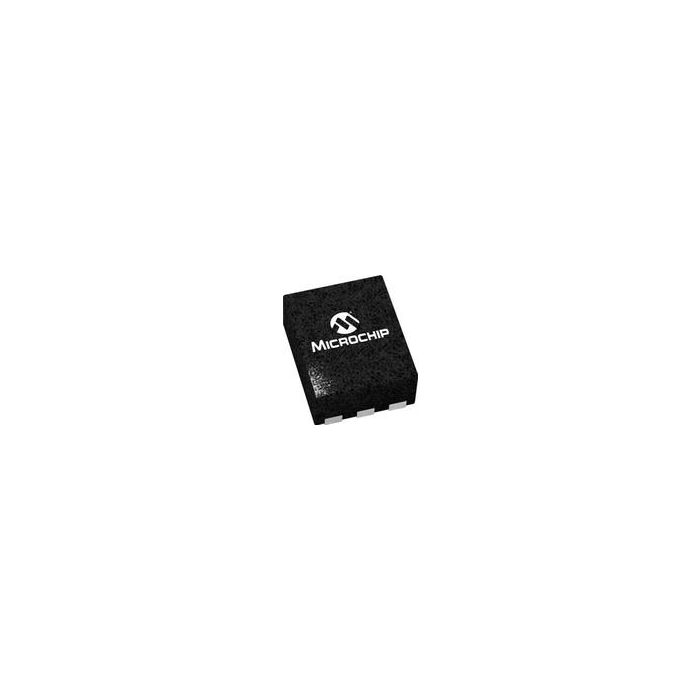

Comparator Single 5.5V 6-Pin TDFN EP
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 68
- Inventory 3
- PCNs 56
- GIDEP-Alerts 5
- MaskPart MIC841LYMT%
Parametry
- Manufacturer Type Voltage Comparator
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) 12000(Typ)
- Maximum Quiescent Current (mA) N/A
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) 0.0015(Typ)@5.5V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.5
- Number of Channels per Chip 1
- Output Type Push-Pull
- Power Supply Type Single
- Process Technology BiCMOS
- Rail to Rail N/A
- Strobe Capability No
- Supplier Temperature Grade N/A
- Typical CMRR (dB) N/A
- Typical Dual Supply Voltage (V) N/R
- Typical Output Current (mA) 20(Max)
- Typical PSRR (dB) N/A
- Typical Response Time (us) N/A
- Typical Response Time Range (us) N/A
- Typical Single Supply Voltage (V) 3|5
- Typical Voltage Gain (dB) N/A
- Typical Voltage Gain Range (dB) N/A
