MIC5841BWM

ProducentMicrochip TechnologyEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC5841BWM_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC5841BWM

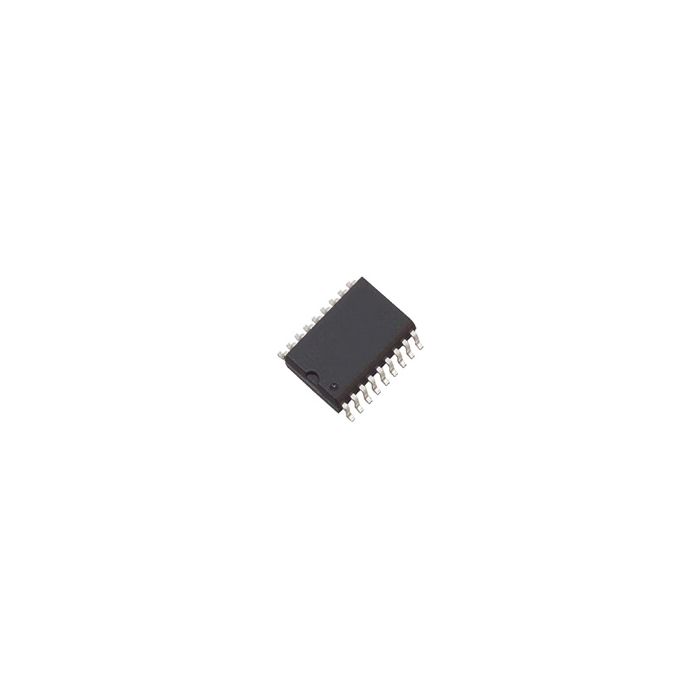

Shift Register/Latch/Driver Single 8-Bit Serial to Serial/Parallel 18-Pin SOIC W

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 9
  • Inventory 10*
  • PCNs 51
  • GIDEP-Alerts 1
  • MaskPart MIC5841BWM%
  • IntroductionDate Oct 01, 1998

Parametry

  • Absolute Propagation Delay Time (ns) N/A
  • Direction Type Uni-Directional
  • Logic Family N/A
  • Logic Function Shift Register/Latch/Driver
  • Maximum Operating Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Propagation Delay Time @ Maximum CL (ns) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Count Input Enables 0
  • Number of Element Inputs 1
  • Number of Element Outputs 9
  • Number of Elements per Chip 1
  • Number of Selection Inputs per Element 0
  • Number of Stages 8
  • Operation Mode Serial to Serial/Parallel
  • Output Type N/A
  • Parallel Enable Input No
  • Preset Type N/A
  • Process Technology BiCMOS
  • Propagation Delay Test Condition (pF) N/A
  • Reset Type N/A
  • Supplier Temperature Grade N/A
  • Terminal Count Output No
  • Tolerant I/Os (V) N/A
  • Triggering Type Positive-Edge
  • Type N/R
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Shift Register/Latch/Driver Single 8-Bit Serial to Serial/Parallel 18-Pin SOIC W
