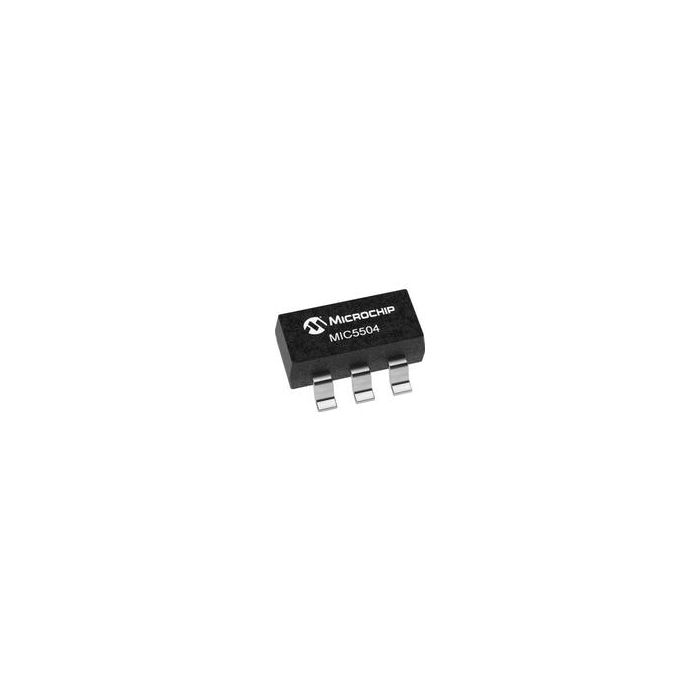

MIC5504-3.3YM5-T5

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC5504-3.3YM5-T5_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC5504-3.3YM5-T5

LDO Regulator Pos 3.3V 0.3A 5-Pin SOT-23 T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1002
  • Inventory 9
  • PCNs 49
  • GIDEP-Alerts 1
  • MaskPart MIC55043.3YM5T5%

Parametry

  • Accuracy (%) ±2
  • Junction to Ambient 253°C/W
  • Junction to Case N/A
  • Line Regulation 0.02%/V(Typ)
  • Load Regulation 40mV
  • Maximum Dropout Voltage @ Current (V) 0.19@150mA|0.38@300mA
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.3
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 125
  • Minimum Input Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Noise Spectral Density (uV/rtHz) N/A
  • Number of Outputs 1
  • Output Capacitor Type Ceramic
  • Output Type Fixed
  • Output Voltage (V) 3.3
  • Output Voltage Range (V) 1.8 to 10
  • Pass Element Type N/A
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Current Limit|Thermal Shutdown Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Bias Voltage (VDC) N/A
  • Typical Dropout Voltage @ Current (V) 0.08@150mA|0.16@300mA
  • Typical Ground Current @ Full Load (mA) 0.042
  • Typical Output Capacitance (uF) 1
  • Typical Output Noise Voltage (uVrms) 175
  • Typical PSRR (dB) 60
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.038

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 3.3V 0.3A 5-Pin SOT-23 T/R
