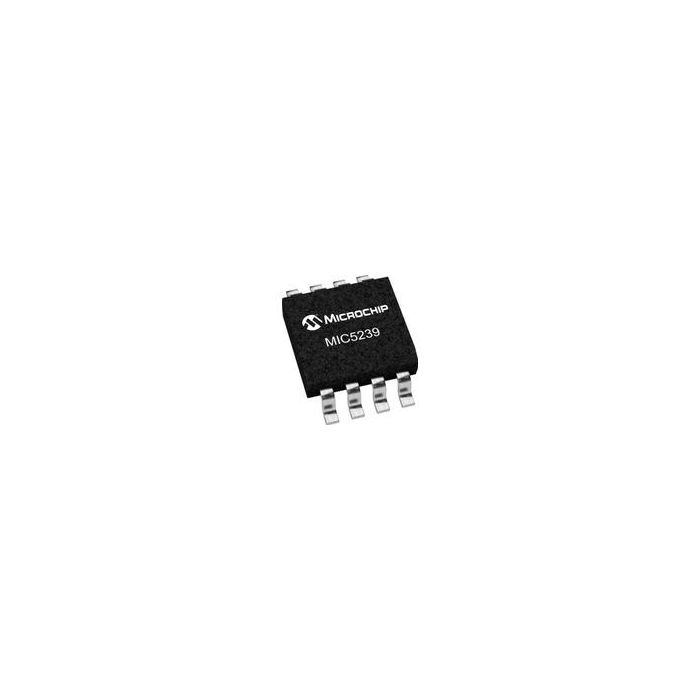

MIC5239YM
ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MIC5239YM_MICROCHIP_TECHNOLOGY
0,00 zł
Opis / MIC5239YM
LDO Regulator Pos 1.24V to 20V 0.5A 8-Pin SOIC N Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 26
- Inventory 10
- PCNs 56
- GIDEP-Alerts 5
- MaskPart MIC5239YM%
- IntroductionDate Jan 01, 2002
Parametry
- Accuracy (%) ±1
- Junction to Ambient 63°C/W
- Junction to Case N/A
- Line Regulation 0.5%
- Load Regulation 30mV
- Maximum Dropout Voltage @ Current (V) 0.35@150mA
- Maximum Input Voltage (V) 30
- Maximum Output Current (A) 0.5
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) N/A
- Maximum Storage Temperature (°C) 125
- Minimum Input Voltage (V) 2.3
- Minimum Storage Temperature (°C) -65
- Noise Spectral Density (uV/rtHz) N/A
- Number of Outputs 1
- Output Capacitor Type Ceramic|Tantalum
- Output Type Adjustable
- Output Voltage (V) 1.24 to 20
- Pass Element Type N/A
- Polarity Positive
- Reference Voltage (V) N/A
- Special Features Current Limit|Reverse Battery Protection|Thermal Shutdown Protection
- Supplier Temperature Grade N/A
- Type LDO
- Typical Bias Voltage (VDC) N/A
- Typical Dropout Voltage @ Current (V) 0.05@100uA|0.26@150mA|0.35@500mA
- Typical Ground Current @ Full Load (mA) 8.5
- Typical Output Capacitance (uF) 3.3
- Typical Output Noise Voltage (uVrms) 160
- Typical PSRR (dB) 50
- Typical Power Dissipation (mW) N/A
- Typical Quiescent Current (mA) 0.023
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | LDO Regulator Pos 1.24V to 20V 0.5A 8-Pin SOIC N Tube |
