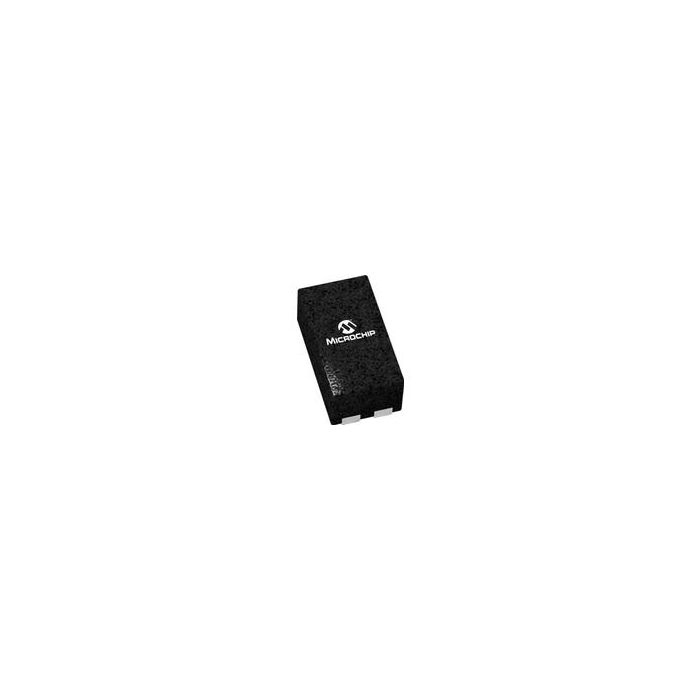

MIC5019YFT-TR

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC5019YFT-TR_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC5019YFT-TR

Driver 1-OUT High Side/Low Side Non-Inv 4-Pin FTDFN T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • Inventory 8
  • PCNs 60
  • GIDEP-Alerts 4
  • MaskPart MIC5019YFT%

Parametry

  • Absolute Propagation Delay Time (ns) N/A
  • Bridge Type N/A
  • Driver Configuration Non-Inverting
  • Driver Type High Side|Low Side
  • High and Low Sides Dependency N/R
  • Input Logic Compatibility N/A
  • Latch-Up Proof No
  • Maximum Fall Time (ns) N/A
  • Maximum Operating Frequency (kHz) N/A
  • Maximum Operating Supply Voltage (V) 9
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time (ns) N/A
  • Maximum Rise Time (ns) N/A
  • Maximum Storage Temperature (°C) 165
  • Maximum Supply Current (mA) 0.15(Typ)
  • Maximum Turn-Off Delay Time (ns) 60000
  • Maximum Turn-On Delay Time (ns) 4200000
  • Minimum Operating Supply Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Drivers 1
  • Number of Outputs 1
  • Output Resistance (Ohm) N/A
  • Peak Output Current (A) N/A
  • Reference Voltage (V) N/A
  • Special Features N/A
  • Supplier Temperature Grade N/A
  • Typical Input High Threshold Voltage (V) 2.7(Min)
  • Typical Input Low Threshold Voltage (V) 0.8(Max)
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Driver 1-OUT High Side/Low Side Non-Inv 4-Pin FTDFN T/R
