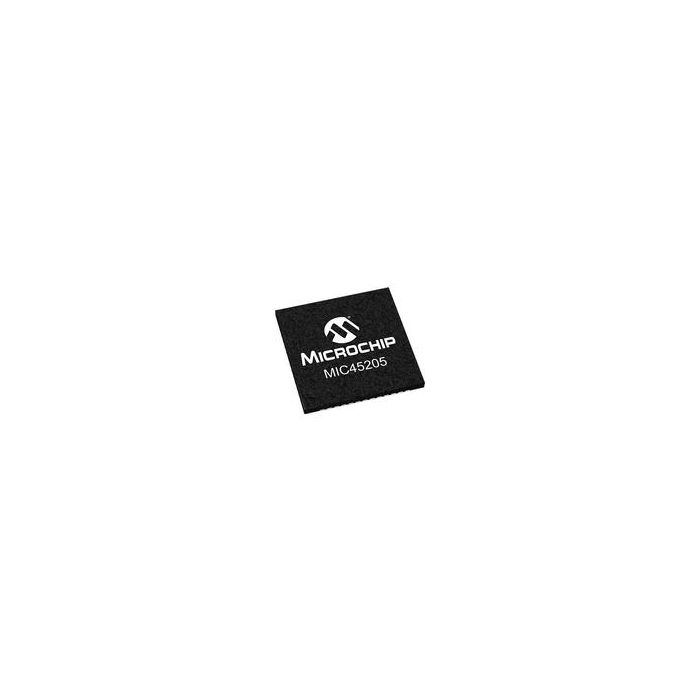

MIC45205-2YMP-T1

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC45205-2YMP-T1_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC45205-2YMP-T1

1-OUT 0.8V to 5.5V 6A 52-Pin B1QFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 6
  • Inventory 5
  • PCNs 54
  • GIDEP-Alerts 2
  • MaskPart MIC452052YMP%
  • IntroductionDate Jan 01, 2000

Parametry

  • Efficiency (%) 93(Min)
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation 3.6%
  • Maximum Input Voltage (V) 26
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 6
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 4.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • On/Off Logic Positive
  • Output Type Adjustable
  • Output Voltage (V) 0.8 to 5.5
  • Process Technology N/A
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 200 to 600
  • Switching Regulator Yes
  • Tradename N/A
  • Type Step Down
  • Typical Input Voltage (V) N/A
  • Typical Standby Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description 1-OUT 0.8V to 5.5V 6A 52-Pin B1QFN EP T/R
