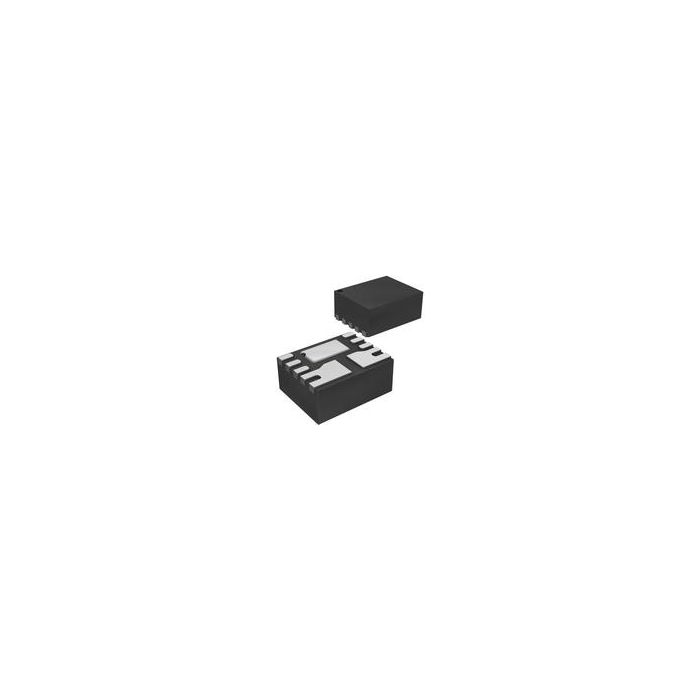

MIC33030-4YHJ-TR
| Do pobrania | Download |
|---|---|
| Main description | Module DC-DC 1-OUT 1.2V 0.4A 10-Pin DFN EP T/R |
Module DC-DC 1-OUT 1.2V 0.4A 10-Pin DFN EP T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 22
- Inventory 1
- PCNs 58
- GIDEP-Alerts 3
- MaskPart MIC330304YHJ%
- IntroductionDate Apr 01, 2010
Parametry
- Efficiency (%) 78
- Isolation N/A
- Line Regulation 0.5%/V(Typ)
- Load Regulation 0.7%(Typ)
- Maximum Input Voltage (V) 5.5
- Maximum Output Current (A) 0.4
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 2.7
- Minimum Isolation Voltage N/A
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- On/Off Logic N/A
- Output Type Fixed
- Output Voltage (V) 1.2
- Process Technology N/A
- Supplier Temperature Grade N/A
- Switching Frequency (kHz) 800(Typ)
- Switching Regulator Yes
- Tradename N/A
- Type Step Down
- Typical Input Voltage (V) N/A
- Typical Standby Current (mA) N/A
