MIC2981/82BWM TR

ProducentMicrochip TechnologyEURoHSNo (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC2981_82BWM_TR_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC2981/82BWM TR

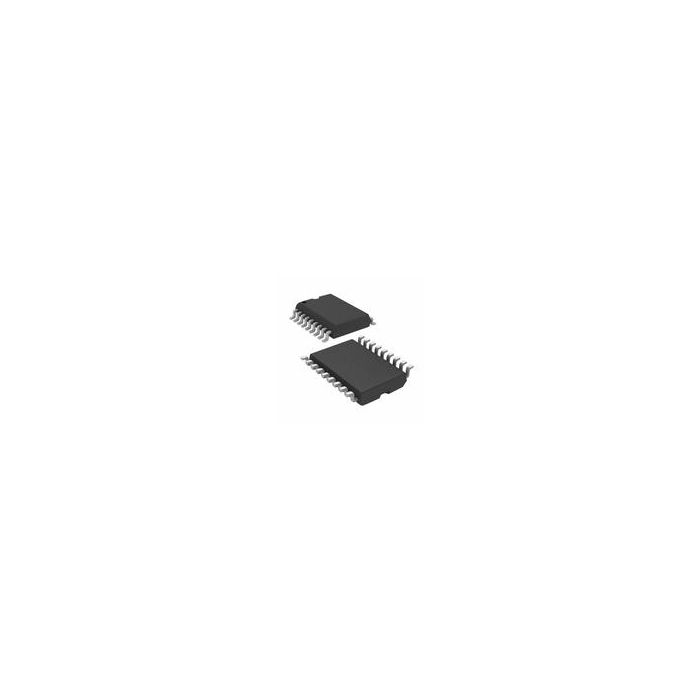

Driver 8-OUT 18-Pin SOP W T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSNo (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 7
  • Inventory 11*
  • PCNs 52
  • GIDEP-Alerts 1
  • MaskPart MIC298182BWM%
  • IntroductionDate Nov 01, 1999

Parametry

  • Absolute Propagation Delay Time (ns) N/A
  • Bridge Type N/A
  • Driver Configuration N/A
  • Driver Type N/A
  • High and Low Sides Dependency N/A
  • Input Logic Compatibility CMOS|TTL
  • Latch-Up Proof No
  • Maximum Fall Time (ns) N/A
  • Maximum Operating Frequency (kHz) N/A
  • Maximum Operating Supply Voltage (V) 50
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time (ns) N/A
  • Maximum Rise Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 10
  • Maximum Turn-Off Delay Time (ns) 2000
  • Maximum Turn-On Delay Time (ns) 10000
  • Minimum Operating Supply Voltage (V) 5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Drivers 8
  • Number of Outputs 8
  • Output Resistance (Ohm) N/A
  • Peak Output Current (A) N/A
  • Reference Voltage (V) N/A
  • Special Features N/A
  • Supplier Temperature Grade N/A
  • Type N/A
  • Typical Input High Threshold Voltage (V) N/A
  • Typical Input Low Threshold Voltage (V) N/A
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Driver 8-OUT 18-Pin SOP W T/R
