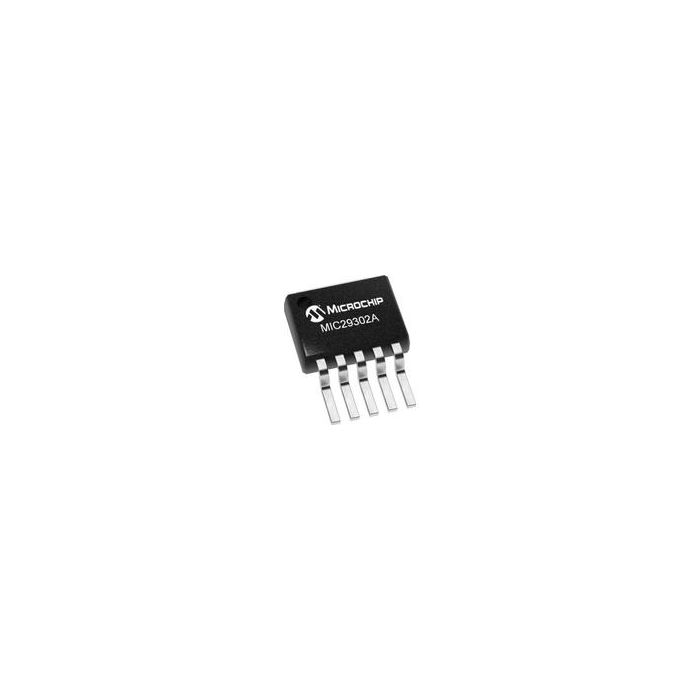

MIC29302AWD-TR

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC29302AWD-TR_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC29302AWD-TR

LDO Regulator Pos 1.24V to 15V 3A 6-Pin(5+Tab) TO-252 T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 137
  • Inventory 9
  • PCNs 62
  • GIDEP-Alerts 5
  • MaskPart MIC29302AWD%

Parametry

  • Accuracy (%) ±2
  • Junction to Ambient 35°C/W
  • Junction to Case 3°C/W
  • Line Regulation 0.5%
  • Load Regulation 1%
  • Maximum Dropout Voltage @ Current (V) 0.2@100mA|0.8@3A
  • Maximum Input Voltage (V) 16
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 3
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 125
  • Minimum Input Voltage (V) 3
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Noise Spectral Density (uV/rtHz) N/A
  • Number of Outputs 1
  • Output Capacitor Type N/A
  • Output Type Adjustable
  • Output Voltage (V) 1.24 to 15
  • Output Voltage Range (V)
  • Pass Element Type N/A
  • Polarity Positive
  • Reference Voltage (V) 1.267
  • Special Features Thermal Shutdown Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Bias Voltage (VDC) N/A
  • Typical Dropout Voltage @ Current (V) 0.08@100mA|0.22@750mA|0.275@1.5A|0.45@3A
  • Typical Ground Current @ Full Load (mA) 60
  • Typical Output Capacitance (uF) N/A
  • Typical Output Noise Voltage (uVrms) 400
  • Typical PSRR (dB) N/A
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 1.24V to 15V 3A 6-Pin(5+Tab) TO-252 T/R
