MIC2876-5.0YMT-T5

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC2876-5.0YMT-T5_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC2876-5.0YMT-T5

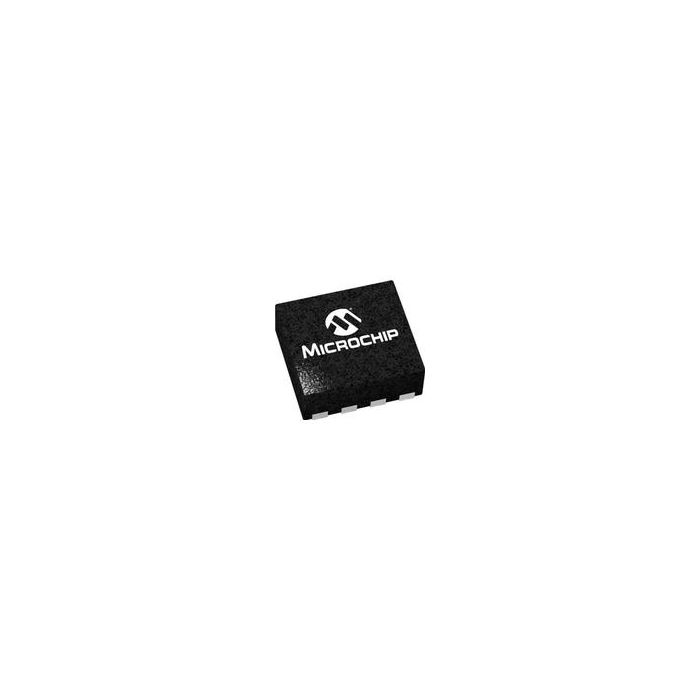

Conv DC-DC 2.5V to 5.5V Synchronous Step Up Single-Out 5V 8-Pin TDFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 77
  • Inventory 7
  • PCNs 49
  • GIDEP-Alerts 1
  • MaskPart MIC28765.0YMTT5%

Parametry

  • Efficiency (%) 95
  • Isolation N/A
  • Line Regulation 0.3%/V(Typ)
  • Load Regulation 0.2%/A(Typ)
  • Maximum High Level Output Voltage (V) N/A
  • Maximum Input Voltage (V) 5.5
  • Maximum Low Level Output Voltage (V) N/A
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) N/A
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Type Fixed
  • Output Voltage (V) 5
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 2000(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Up
  • Typical Input Voltage (V) N/A
  • Typical Output Resistance (Ohm) N/A
  • Typical Quiescent Current (uA) 109
  • Typical Switch Current (A) 4.8

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.5V to 5.5V Synchronous Step Up Single-Out 5V 8-Pin TDFN EP T/R
