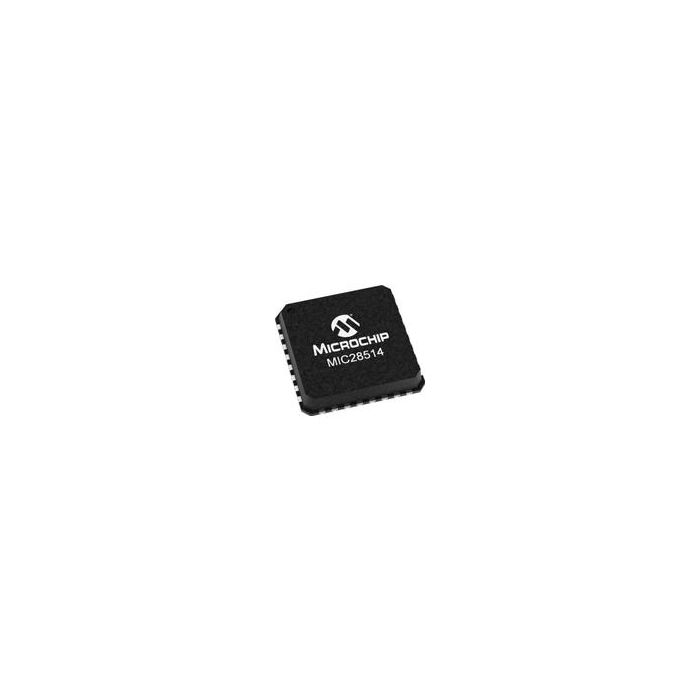

MIC28514T-E/PHA

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC28514T-E_PHA_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC28514T-E/PHA

Conv DC-DC 4.5V to 75V Synchronous Step Down Single-Out 0.6V to 32V 5A 32-Pin VQFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 6
  • PCNs 47
  • GIDEP-Alerts 1
  • MaskPart MIC28514TEPHA%
  • IntroductionDate Feb 16, 2017

Parametry

  • Efficiency (%) 95
  • Isolation N/A
  • Line Regulation 0.1%(Typ)
  • Load Regulation 0.04%(Typ)
  • Maximum High Level Output Voltage (V) N/A
  • Maximum Input Voltage (V) 75
  • Maximum Low Level Output Voltage (V) N/A
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 5
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 4.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4.5 to 75
  • Output Type Adjustable
  • Output Voltage (V) 0.6 to 32
  • Supplier Temperature Grade Extended
  • Switching Frequency (kHz) 270 to 800
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Resistance (Ohm) N/A
  • Typical Quiescent Current (uA) 1250
  • Typical Switch Current (A) 6.25

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4.5V to 75V Synchronous Step Down Single-Out 0.6V to 32V 5A 32-Pin VQFN EP T/R
