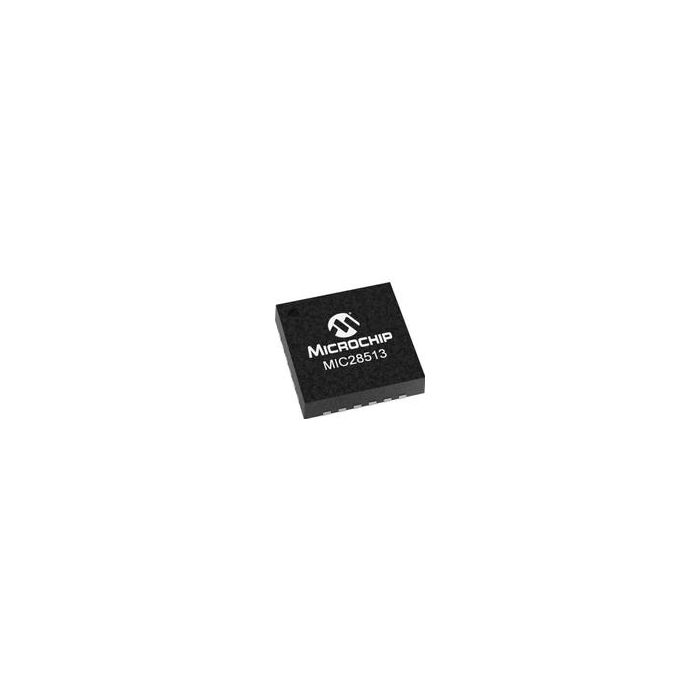

MIC28513-2YFL-T5

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC28513-2YFL-T5_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC28513-2YFL-T5

Conv DC-DC 4.6V to 45V Synchronous Step Down Single-Out 0.8V 4A 24-Pin FQFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 2
  • Inventory 4
  • PCNs 57
  • GIDEP-Alerts 4
  • MaskPart MIC285132YFLT5%

Parametry

  • Efficiency (%) N/A
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation 0.4%
  • Maximum High Level Output Voltage (V) N/A
  • Maximum Input Voltage (V) 45
  • Maximum Low Level Output Voltage (V) N/A
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 4
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 4.6
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4.6 to 45
  • Output Type Adjustable
  • Output Voltage (V) 0.8(Min)
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 200 to 680
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Resistance (Ohm) N/A
  • Typical Quiescent Current (uA) 700
  • Typical Switch Current (A) N/A

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4.6V to 45V Synchronous Step Down Single-Out 0.8V 4A 24-Pin FQFN EP T/R
