MIC26950YJL

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC26950YJL_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC26950YJL

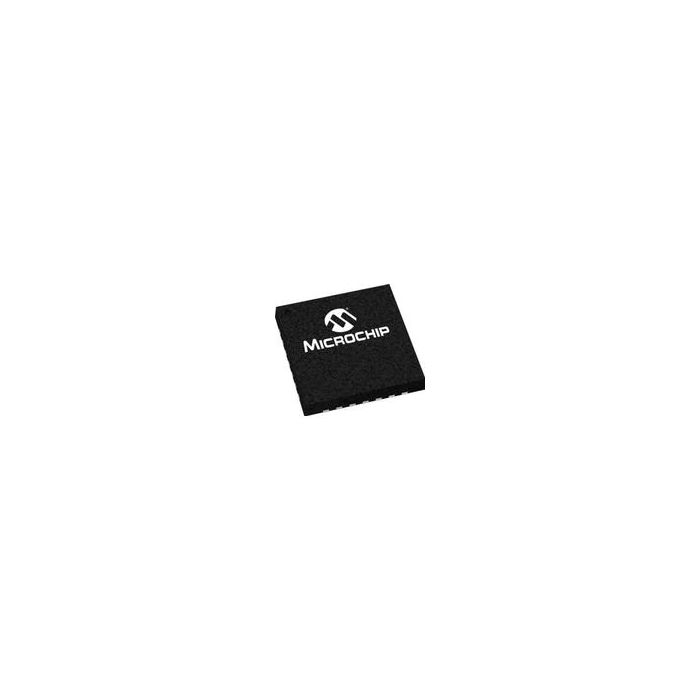

Conv DC-DC 4.5V to 26V Step Down Single-Out 0.8V to 5.5V 12A 28-Pin QFN EP

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 2
  • Inventory 4*
  • PCNs 45
  • MaskPart MIC26950YJL%
  • IntroductionDate Jun 10, 2010

Parametry

  • Efficiency (%) 95
  • Isolation N/A
  • Line Regulation 0.1%(Typ)
  • Load Regulation 0.2%(Typ)
  • Maximum Input Voltage (V) 26
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 12
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 4.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4.5 to 26
  • Output Type Adjustable
  • Output Voltage (V) 0.8 to 5.5
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 300(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 1400

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4.5V to 26V Step Down Single-Out 0.8V to 5.5V 12A 28-Pin QFN EP
