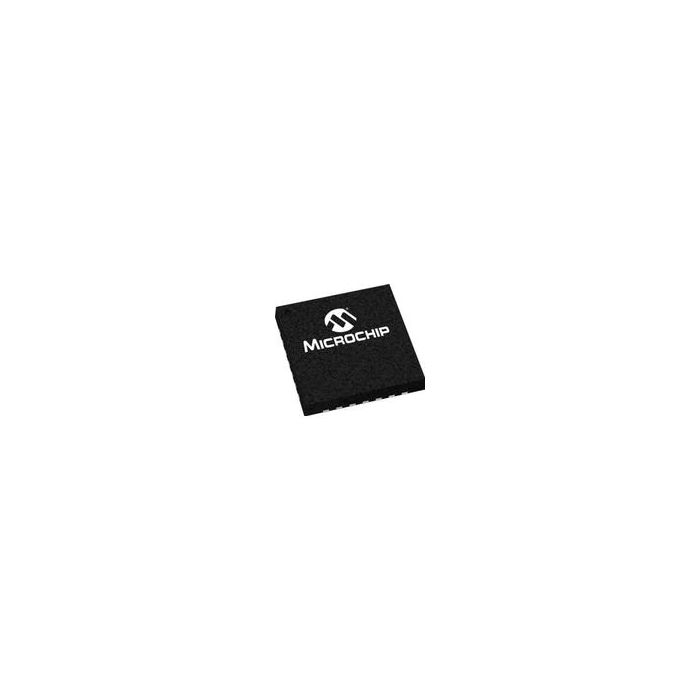

MIC24052YJL

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC24052YJL_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC24052YJL

Conv DC-DC 4.5V to 19V Synchronous Step Down Single-Out 0.8V to 5.5V 6A 28-Pin QFN EP

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 71
  • Inventory 6*
  • PCNs 45
  • MaskPart MIC24052YJL%

Parametry

  • Efficiency (%) 95
  • Isolation N/A
  • Line Regulation 0.25%(Typ)
  • Load Regulation 0.25%(Typ)
  • Maximum Input Voltage (V) 19
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 6
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 4.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Type Adjustable
  • Output Voltage (V) 0.8 to 5.5
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 600(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 450
  • Typical Switch Current (A) N/A

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4.5V to 19V Synchronous Step Down Single-Out 0.8V to 5.5V 6A 28-Pin QFN EP
