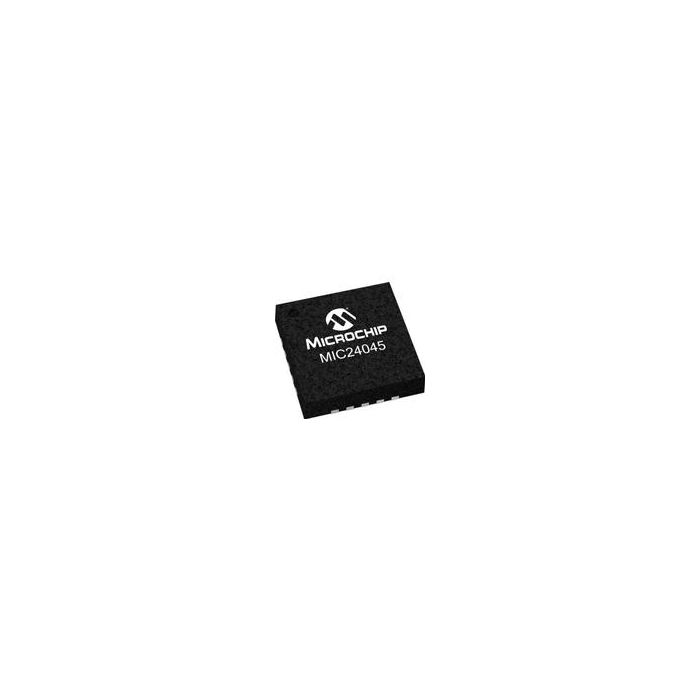

MIC24045-EIYFL

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC24045-EIYFL_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC24045-EIYFL

Conv DC-DC 4.5V to 19V Step Down Single-Out 1.2V 5A 20-Pin VQFN Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • PCNs 46
  • GIDEP-Alerts 1
  • MaskPart MIC24045EIYFL%

Parametry

  • Efficiency (%) 82.3(Typ)
  • Isolation N/A
  • Line Regulation 0.1%(Typ)
  • Load Regulation 0.2%(Typ)
  • Maximum High Level Output Voltage (V) N/A
  • Maximum Input Voltage (V) 19
  • Maximum Low Level Output Voltage (V) N/A
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 5
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 4.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4.5 to 19
  • Output Type Fixed
  • Output Voltage (V) 1.2
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 1200(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Resistance (Ohm) N/A
  • Typical Quiescent Current (uA) N/A
  • Typical Switch Current (A) 9.4

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4.5V to 19V Step Down Single-Out 1.2V 5A 20-Pin VQFN Tube
