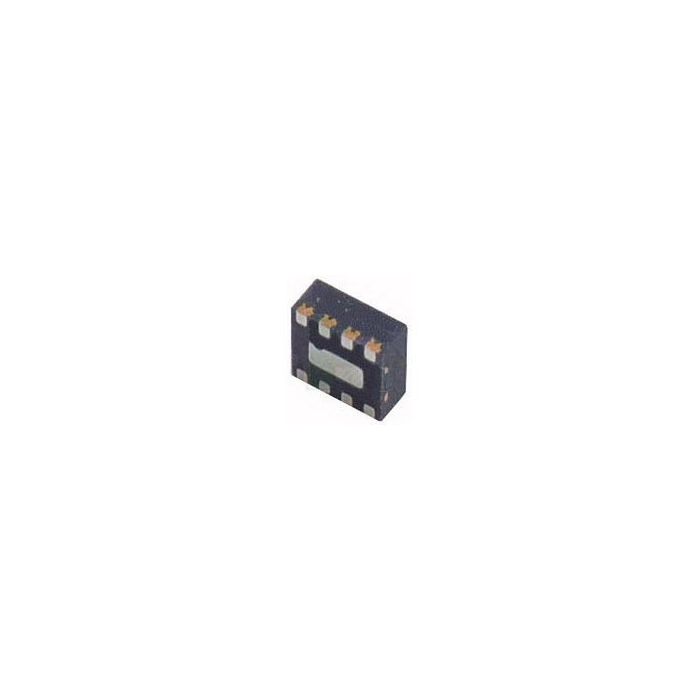

MIC23150-GYMT

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863).
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC23150-GYMT_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC23150-GYMT

Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 1.8V 2A 8-Pin TDFN EP

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)

Informacje dodatkowe

  • Crosses 477
  • Inventory 1*
  • PCNs 45
  • MaskPart MIC23150GYMT%
  • IntroductionDate Aug 01, 2008

Parametry

  • Efficiency (%) 93
  • Isolation N/A
  • Line Regulation 0.3%/V(Typ)
  • Load Regulation 0.75%/A(Typ)
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 2
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.7
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.7 to 5.5
  • Output Type Fixed
  • Output Voltage (V) 1.8
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 4000(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 23

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 1.8V 2A 8-Pin TDFN EP
