MIC23031-GYMT
Do pobrania | Download |
---|---|
Main description | Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 1.8V 0.4A 6-Pin TDFN EP |

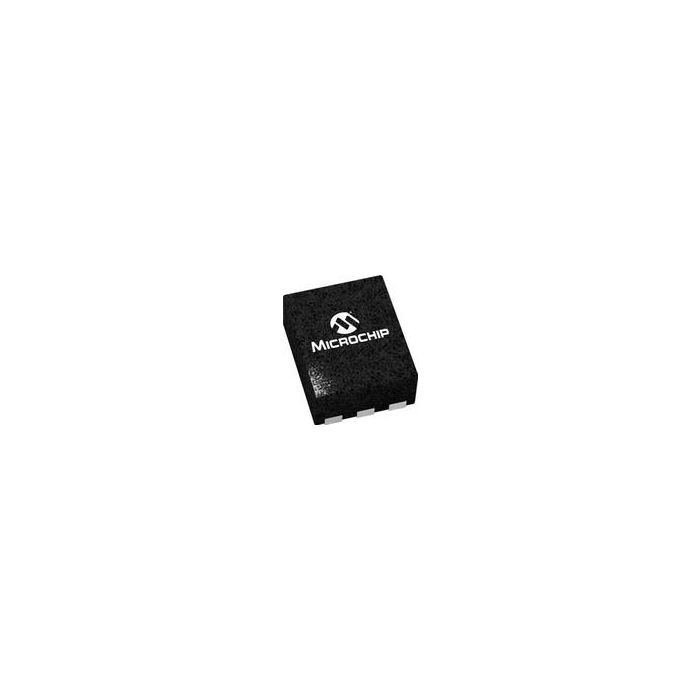

Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 1.8V 0.4A 6-Pin TDFN EP
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 206
- Inventory 4*
- PCNs 45
- MaskPart MIC23031GYMT%
- IntroductionDate May 01, 2008
Parametry
- Efficiency (%) 93
- Isolation N/A
- Line Regulation 0.3%/V(Typ)
- Load Regulation 0.7%(Typ)
- Maximum Input Voltage (V) 5.5
- Maximum Output Current (A) 0.4
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 2.7
- Minimum Isolation Voltage N/A
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- Output Type Fixed
- Output Voltage (V) 1.8
- Supplier Temperature Grade N/A
- Switching Frequency (kHz) 4000(Typ)
- Switching Regulator Yes
- Technology N/A
- Type Synchronous Step Down
- Typical Input Voltage (V) N/A
- Typical Quiescent Current (uA) 21
