MIC2230-S4YML

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC2230-S4YML_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC2230-S4YML

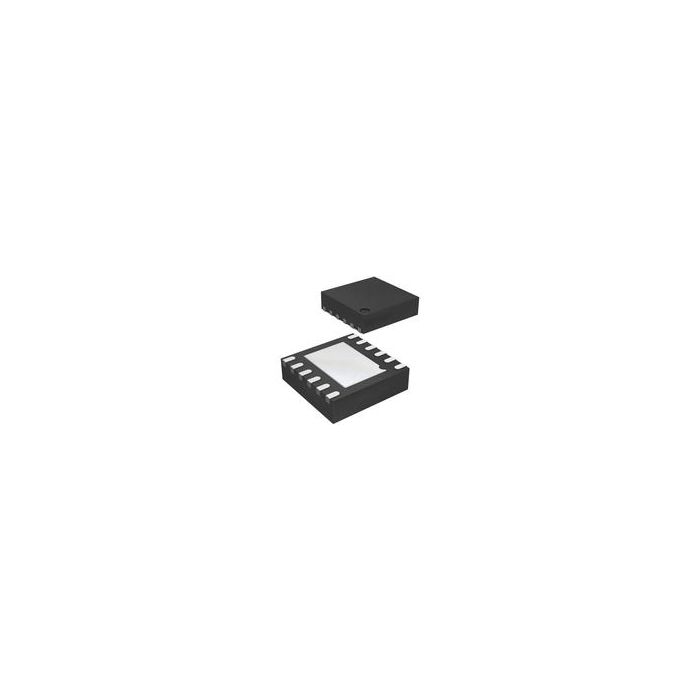

Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 3.3V/1.2V 0.8A/0.8A 12-Pin DFN EP

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 32
  • Inventory 3*
  • PCNs 47
  • MaskPart MIC2230S4YML%
  • IntroductionDate Jan 01, 2007

Parametry

  • Efficiency (%) 96
  • Isolation N/A
  • Line Regulation 0.1%(Typ)
  • Load Regulation 0.5%(Typ)
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.8|0.8
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 2
  • Operating Supply Voltage (V) 2.5 to 5.5
  • Output Type Adjustable
  • Output Voltage (V) 3.3|1.2
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 2500(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) N/A

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 3.3V/1.2V 0.8A/0.8A 12-Pin DFN EP
