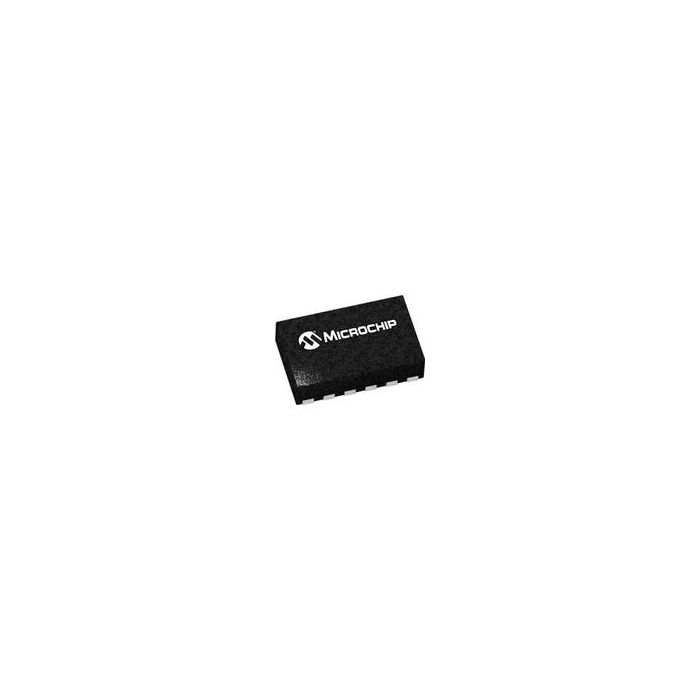

MIC22205YML

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC22205YML_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC22205YML

Conv DC-DC 2.9V to 5.5V Synchronous Step Down Single-Out 0.7V 2A 12-Pin DFN EP

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 38
  • Inventory 5*
  • PCNs 47
  • MaskPart MIC22205YML%
  • IntroductionDate Aug 25, 2011

Parametry

  • Efficiency (%) 95(Min)
  • Isolation N/A
  • Line Regulation 0.2%(Typ)
  • Load Regulation 0.2%(Typ)
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 2
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.9
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.9 to 5.5
  • Output Type Adjustable
  • Output Voltage (V) 0.7(Min)
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 1000(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 1.3

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.9V to 5.5V Synchronous Step Down Single-Out 0.7V 2A 12-Pin DFN EP
