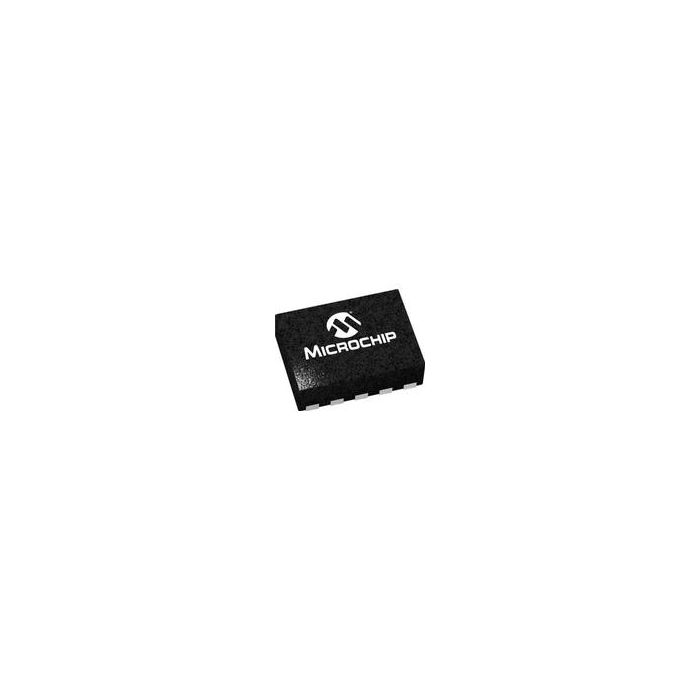

MIC2214-DLYML-TR

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC2214-DLYML-TR_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC2214-DLYML-TR

LDO Regulator Pos 1.85V2.7V 0.15A/0.3A 10-Pin DFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1112
  • PCNs 57
  • GIDEP-Alerts 3
  • MaskPart MIC2214DLYMLTR%
  • IntroductionDate Sep 01, 2002

Parametry

  • Accuracy (%) ±1
  • Junction to Ambient 60°C/W
  • Junction to Case N/A
  • Line Regulation 0.3%/V
  • Load Regulation 1.5%
  • Maximum Dropout Voltage @ Current (V) 0.19@150mA|0.34@300mA
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.15|0.3
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 0.065
  • Maximum Storage Temperature (°C) 125
  • Minimum Input Voltage (V) 2.25
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Noise Spectral Density (uV/rtHz) N/A
  • Number of Outputs 2
  • Output Capacitor Type Ceramic
  • Output Type Fixed
  • Output Voltage (V) 1.85|2.7
  • Output Voltage Range (V) 1.8 to 10
  • Pass Element Type NMOS
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Current Limit|Thermal Shutdown Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Bias Voltage (VDC) N/A
  • Typical Dropout Voltage @ Current (V) 0.12@150mA|0.24@300mA
  • Typical Ground Current @ Full Load (mA) 0.06
  • Typical Output Capacitance (uF) N/A
  • Typical Output Noise Voltage (uVrms) 30
  • Typical PSRR (dB) 60
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.048

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 1.85V2.7V 0.15A/0.3A 10-Pin DFN EP T/R
