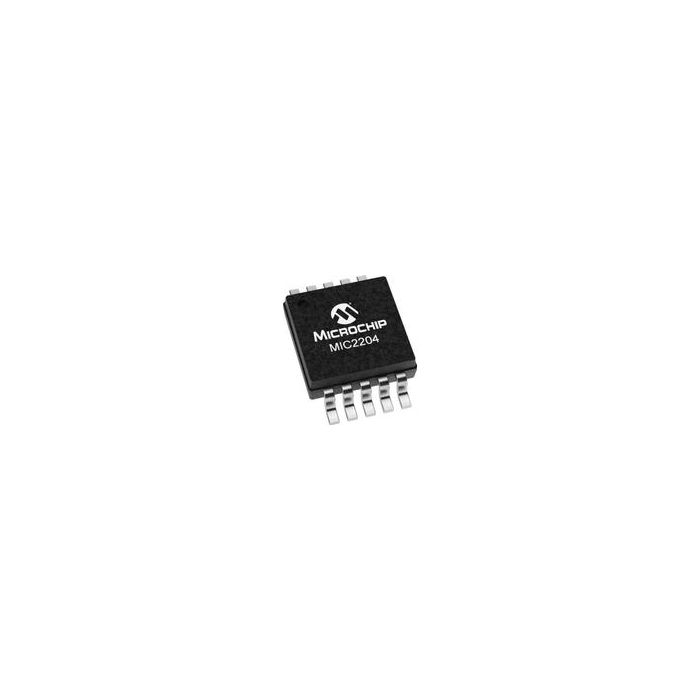

MIC2204YMM

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC2204YMM_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC2204YMM

Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 1V 0.6A 10-Pin MSOP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 42
  • Inventory 3
  • PCNs 55
  • GIDEP-Alerts 3
  • MaskPart MIC2204YMM%
  • IntroductionDate Apr 01, 2003

Parametry

  • Efficiency (%) 95
  • Line Regulation 0.2%(Typ)
  • Load Regulation 0.2%(Typ)
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.6
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 2.3
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.3 to 5.5
  • Output Type Adjustable
  • Output Voltage (V) 1(Min)
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 2200
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 320

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 1V 0.6A 10-Pin MSOP Tube
