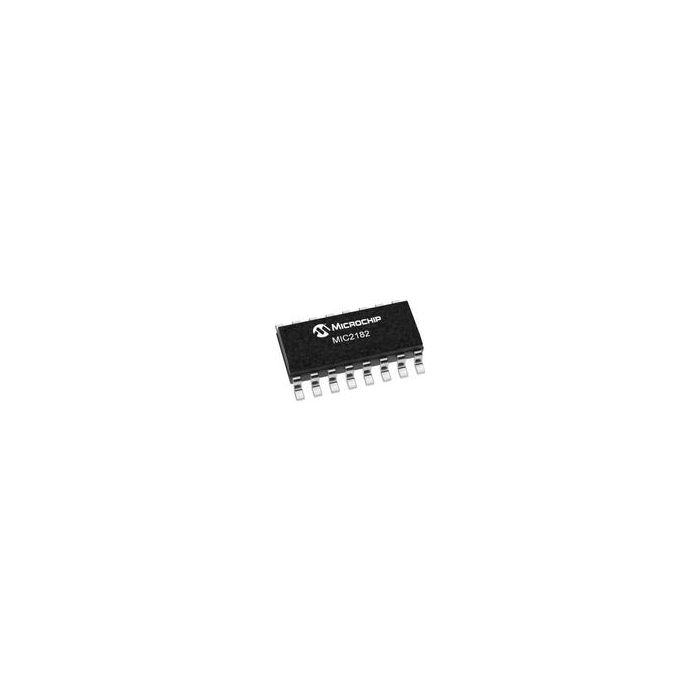

MIC2182YM

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC2182YM_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC2182YM

DC/DC Cntrlr Single-OUT Step Down 330kHz 16-Pin SOIC N Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 203
  • Inventory 7
  • PCNs 57
  • GIDEP-Alerts 4
  • MaskPart MIC2182YM%
  • IntroductionDate Jun 01, 2000

Parametry

  • Maximum Input Voltage (V) 32
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 270
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Maximum Switching Frequency (kHz) 330
  • Minimum Input Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4.5 to 32
  • Output Voltage (V) 1.25 to 6
  • Supplier Temperature Grade N/A
  • Topology Step Down
  • Typical Gate Driver Pull Down Resistance (Ohm) N/A
  • Typical Gate Driver Pull Up Resistance (Ohm) N/A
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) 20
  • Typical Quiescent Current (mA) 0.6

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 330kHz 16-Pin SOIC N Tube
