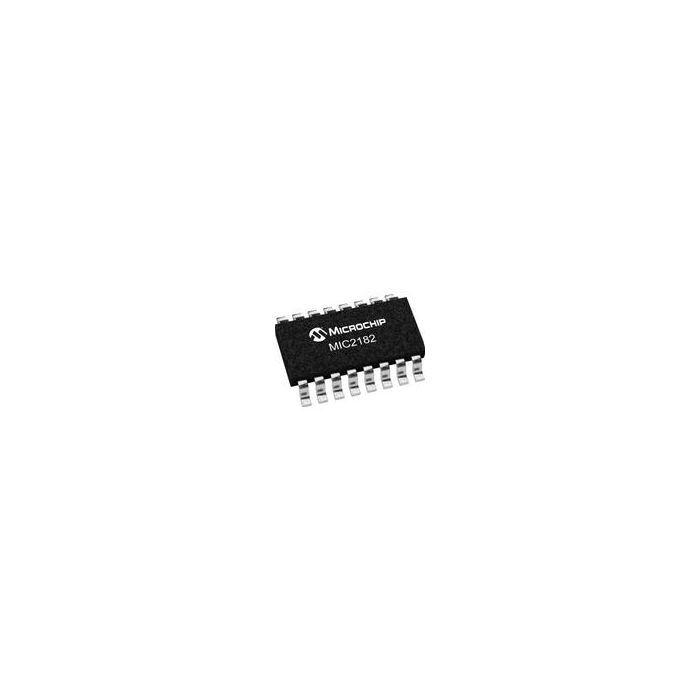

MIC2182-3.3YM-TR
Do pobrania | Download |
---|---|
Main description | DC/DC Cntrlr Single-OUT Step Down 330kHz 16-Pin SOIC N T/R |
DC/DC Cntrlr Single-OUT Step Down 330kHz 16-Pin SOIC N T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 196
- Inventory 6*
- PCNs 60
- GIDEP-Alerts 4
- MaskPart MIC21823.3YM%
- IntroductionDate Jun 01, 2000
Parametry
- Maximum Input Voltage (V) 32
- Maximum Power Dissipation (mW) 270
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Maximum Switching Frequency (kHz) 330
- Minimum Input Voltage (V) 4.5
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- Output Voltage (V) 1.25 to 6
- Supplier Temperature Grade N/A
- Topology Step Down
- Typical Gate Driver Pull Down Resistance (Ohm) N/A
- Typical Gate Driver Pull Up Resistance (Ohm) N/A
- Typical Input Voltage (V) N/A
- Typical Output Current (A) 20
- Typical Quiescent Current (mA) 0.6
