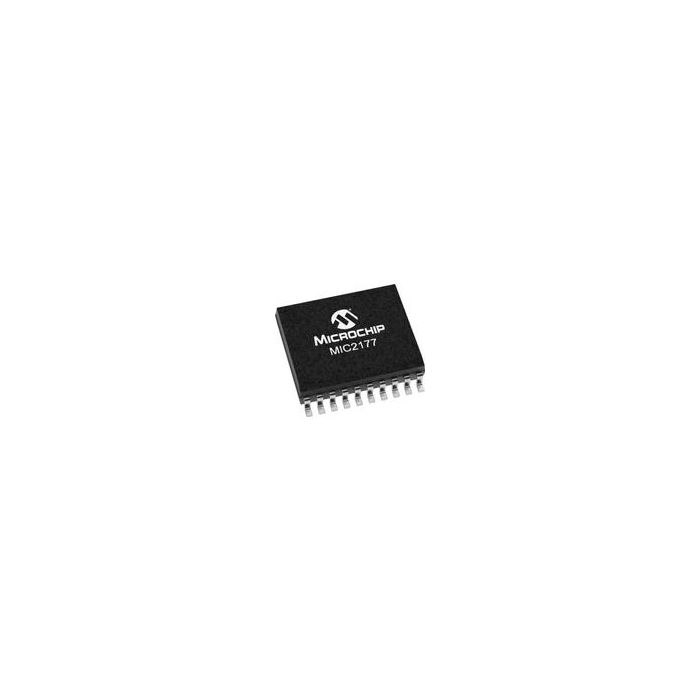

MIC2177-3.3YWM-TR

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC2177-3.3YWM-TR_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC2177-3.3YWM-TR

Conv DC-DC 4.5V to 16.5V Synchronous Step Down Single-Out 3.3V 2.5A 20-Pin SOIC W T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 32
  • Inventory 2
  • PCNs 61
  • GIDEP-Alerts 4
  • MaskPart MIC21773.3YWM%
  • IntroductionDate Apr 01, 1999

Parametry

  • Efficiency (%) 96
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 16.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 2.5
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 4.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4.5 to 16.5
  • Output Type Fixed
  • Output Voltage (V) 3.3
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 200(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 1000

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4.5V to 16.5V Synchronous Step Down Single-Out 3.3V 2.5A 20-Pin SOIC W T/R
