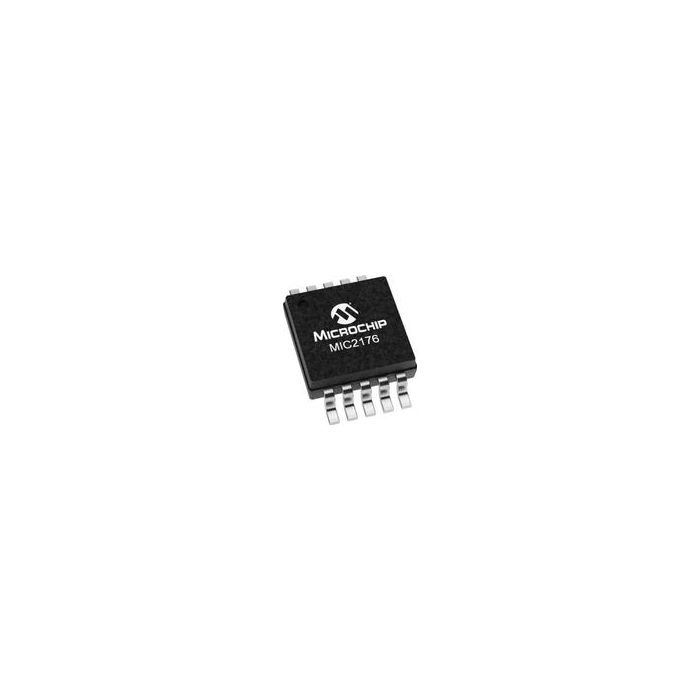

MIC2176-2YMM-TR

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC2176-2YMM-TR_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC2176-2YMM-TR

DC/DC Cntrlr Single-OUT Step Down 10-Pin MSOP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 40
  • Inventory 1
  • PCNs 57
  • GIDEP-Alerts 2
  • MaskPart MIC21762YMM%
  • IntroductionDate Aug 01, 2010

Parametry

  • Maximum Input Voltage (V) 75
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 15
  • Maximum Power Dissipation (mW) 421
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Maximum Switching Frequency (kHz) N/A
  • Minimum Input Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4.5 to 75
  • Output Voltage (V) 0.8(Min)
  • Supplier Temperature Grade N/A
  • Topology Step Down
  • Typical Gate Driver Pull Down Resistance (Ohm) 1.2/1.8
  • Typical Gate Driver Pull Up Resistance (Ohm) 1.8/2.1
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) N/A
  • Typical Quiescent Current (mA) 1.4
  • Typical Switching Frequency (kHz) 200

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 10-Pin MSOP T/R
