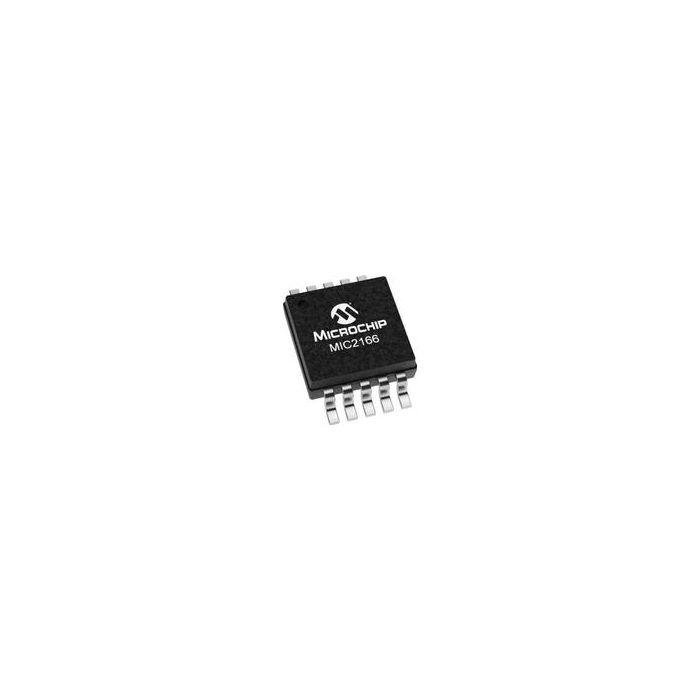

MIC2166YMME

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MIC2166YMME_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MIC2166YMME

DC/DC Cntrlr Single-OUT Step Down 10-Pin MSOP EP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 257
  • Inventory 3
  • PCNs 54
  • GIDEP-Alerts 3
  • MaskPart MIC2166YMME%
  • IntroductionDate Apr 01, 2010

Parametry

  • Maximum Input Voltage (V) 28
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Maximum Switching Frequency (kHz) N/A
  • Minimum Input Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4.5 to 28
  • Output Voltage (V) 0.8 to 5.5
  • Supplier Temperature Grade N/A
  • Topology Step Down
  • Typical Gate Driver Pull Down Resistance (Ohm) 1/1.5
  • Typical Gate Driver Pull Up Resistance (Ohm) 2/2
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) 25
  • Typical Quiescent Current (mA) 0.95
  • Typical Switching Frequency (kHz) 600

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 10-Pin MSOP EP Tube
