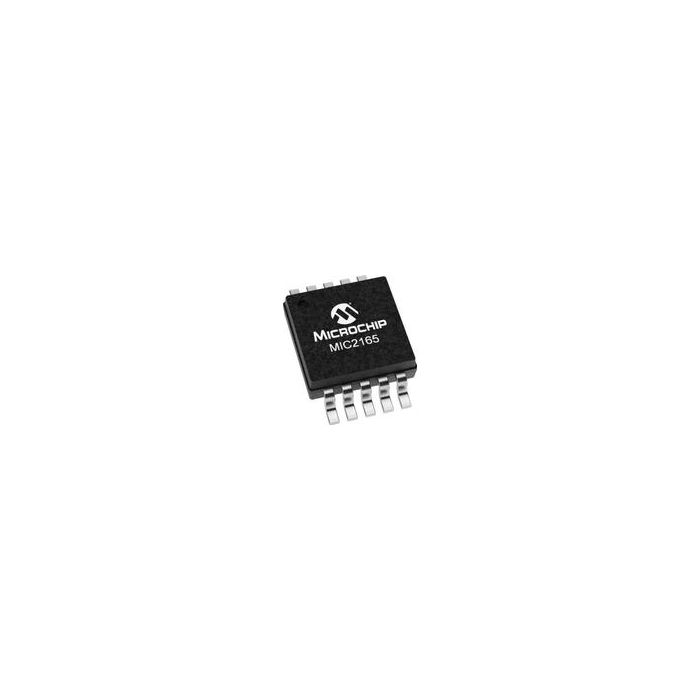

MIC2165YMME-TR
Do pobrania | Download |
---|---|
Main description | DC/DC Cntrlr Single-OUT Step Down 10-Pin MSOP EP T/R |
DC/DC Cntrlr Single-OUT Step Down 10-Pin MSOP EP T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 258
- Inventory 2*
- PCNs 56
- GIDEP-Alerts 2
- MaskPart MIC2165YMME%
- IntroductionDate Mar 09, 2010
Parametry
- Maximum Input Voltage (V) 28
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Maximum Switching Frequency (kHz) N/A
- Minimum Input Voltage (V) 4.5
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- Output Voltage (V) 0.8 to 5.5
- Supplier Temperature Grade N/A
- Topology Step Down
- Typical Gate Driver Pull Down Resistance (Ohm) 1/1.5
- Typical Gate Driver Pull Up Resistance (Ohm) 2/2
- Typical Input Voltage (V) N/A
- Typical Output Current (A) 25
- Typical Quiescent Current (mA) 0.45
- Typical Switching Frequency (kHz) 600
