MCP73853T-I/ML

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP73853T-I_ML_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP73853T-I/ML

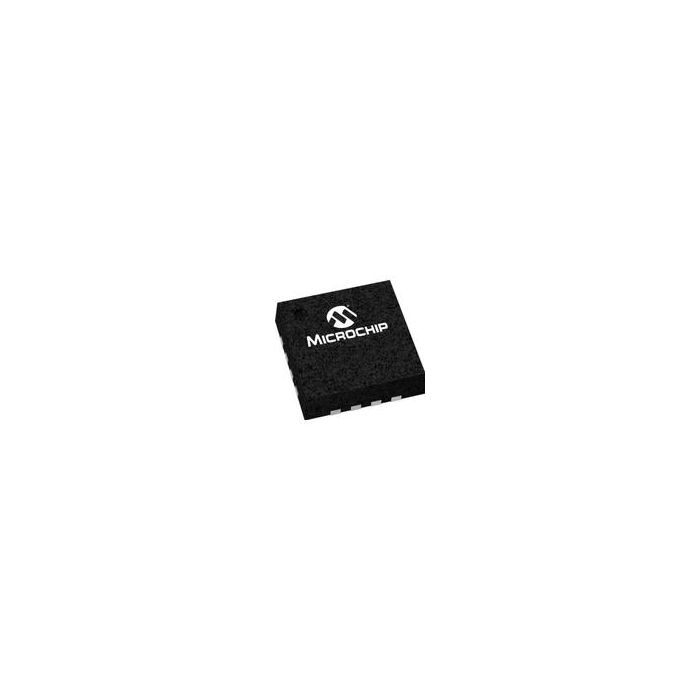

Linear Battery Charger Controller Li-Ion/Li-Pol 100mA 4.1V/4.2V 16-Pin QFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 204
  • Inventory 3
  • PCNs 62
  • GIDEP-Alerts 10
  • MaskPart MCP73853%IML
  • IntroductionDate Nov 04, 2004

Parametry

  • Battery Type Li-Ion|Li-Pol
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Supply Current (mA) 4
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Operating Supply Voltage (V) N/A
  • Output Current (mA) 100
  • Output Voltage (V) 4.1|4.2
  • Supplier Temperature Grade Industrial
  • Type Linear Battery Charger Controller
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Linear Battery Charger Controller Li-Ion/Li-Pol 100mA 4.1V/4.2V 16-Pin QFN EP T/R
