MCP73828-4.1VUATR

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP73828-4.1VUATR_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP73828-4.1VUATR

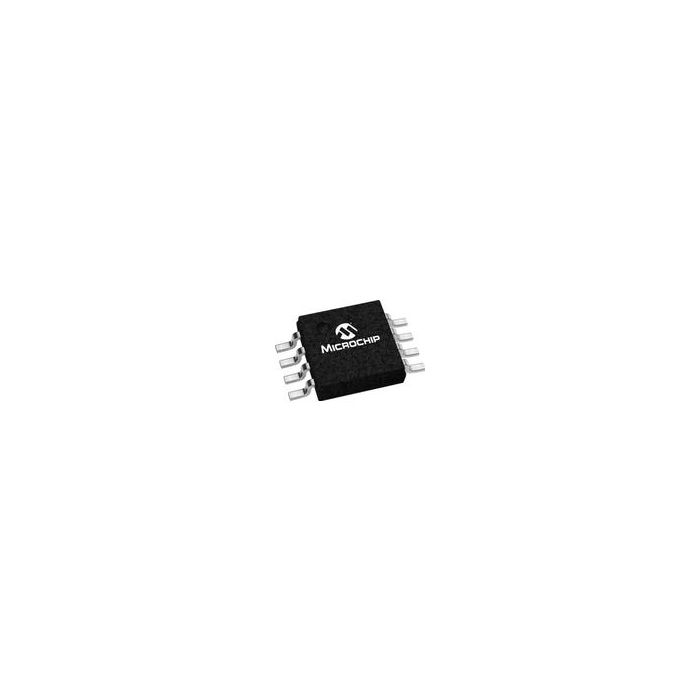

Linear Battery Charger Controller Li-Ion 4.1V 8-Pin MSOP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 304
  • Inventory 3*
  • PCNs 56
  • GIDEP-Alerts 8
  • MaskPart MCP738284.1VUA%
  • IntroductionDate Mar 07, 2002

Parametry

  • Battery Type Li-Ion
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 0.56
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -20
  • Minimum Storage Temperature (°C) -65
  • Operating Supply Voltage (V) N/A
  • Output Current (mA) N/A
  • Output Voltage (V) 4.1
  • Supplier Temperature Grade N/A
  • Type Linear Battery Charger Controller
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Linear Battery Charger Controller Li-Ion 4.1V 8-Pin MSOP T/R
