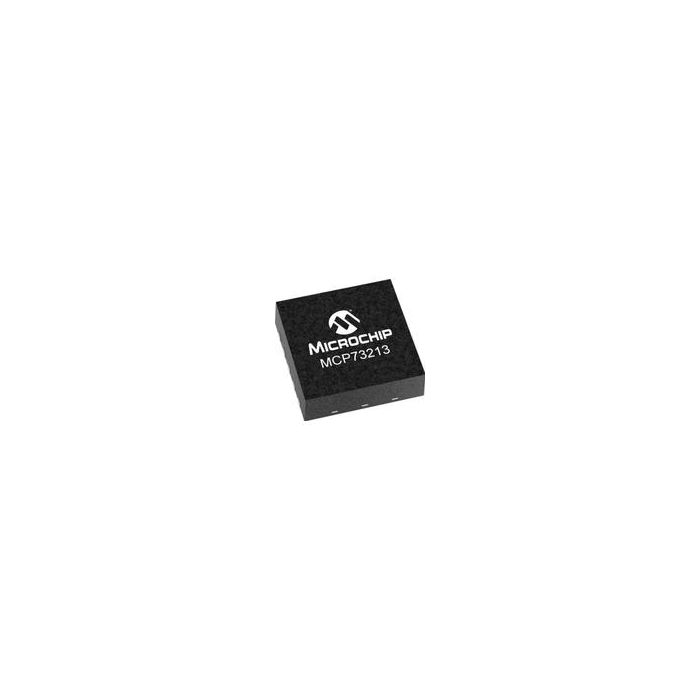

MCP73213T-F6TI/MF

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP73213T-F6TI_MF_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP73213T-F6TI/MF

Linear Battery Charger Controller Li-Ion/Li-Polymer 1000mA 10-Pin DFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 13
  • Inventory 1
  • PCNs 46
  • GIDEP-Alerts 1
  • MaskPart MCP73213TF6TIMF%

Parametry

  • Battery Type Li-Ion|Li-Polymer
  • Maximum Operating Supply Voltage (V) 13
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 0.7(Typ)
  • Minimum Operating Supply Voltage (V) 4.2
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Operating Supply Voltage (V) 4.2 to 13
  • Output Current (mA) 1000
  • Output Voltage (V) N/A
  • Supplier Temperature Grade Industrial
  • Type Linear Battery Charger Controller
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Linear Battery Charger Controller Li-Ion/Li-Polymer 1000mA 10-Pin DFN EP T/R
