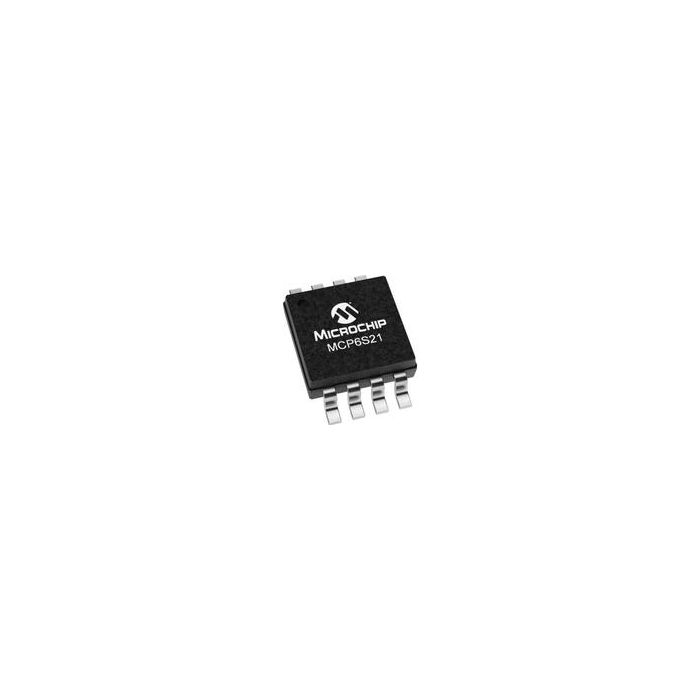

MCP6S21T-I/MS

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP6S21T-I_MS_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP6S21T-I/MS

SP Amp Variable Gain Amp Single R-R I/O 5.5V 8-Pin MSOP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 29
  • Inventory 7
  • PCNs 63
  • GIDEP-Alerts 12
  • MaskPart MCP6S21%IMS
  • IntroductionDate Mar 21, 2003

Parametry

  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Input Bias Current (uA) 0.000001(Typ)@5.5V
  • Maximum Input Offset Voltage (mV) 0.275@5.5V
  • Maximum Input Resistance (MOhm) 0.0064(Typ)@5.5V
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 1.35@5.5V
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Supply Current (mA) N/A
  • Maximum Supply Voltage Range (V) 5 to 7
  • Maximum Voltage Gain (dB) 30.1(Typ)
  • Maximum Voltage Gain Range (dB)
  • Minimum CMRR (dB) N/A
  • Minimum CMRR Range (dB) N/A
  • Minimum DC Continuous Isolation Voltage (V) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum PSRR (dB) 70
  • Minimum Single Supply Voltage (V) 2.5
  • Number of Channels per Chip 1
  • Number of Elements per Chip 1
  • Output Type N/A
  • Power Supply Type Single
  • Rail to Rail Rail to Rail Input/Output
  • Supplier Temperature Grade N/A
  • Type Programmable Gain Amplifier
  • Typical Dual Supply Voltage (V) N/R
  • Typical Gain Bandwidth Product (MHz) N/A
  • Typical Output Current (mA) 30
  • Typical Single Supply Voltage (V) 3|5

Więcej informacji

Do pobrania Download
Main description SP Amp Variable Gain Amp Single R-R I/O 5.5V 8-Pin MSOP T/R
