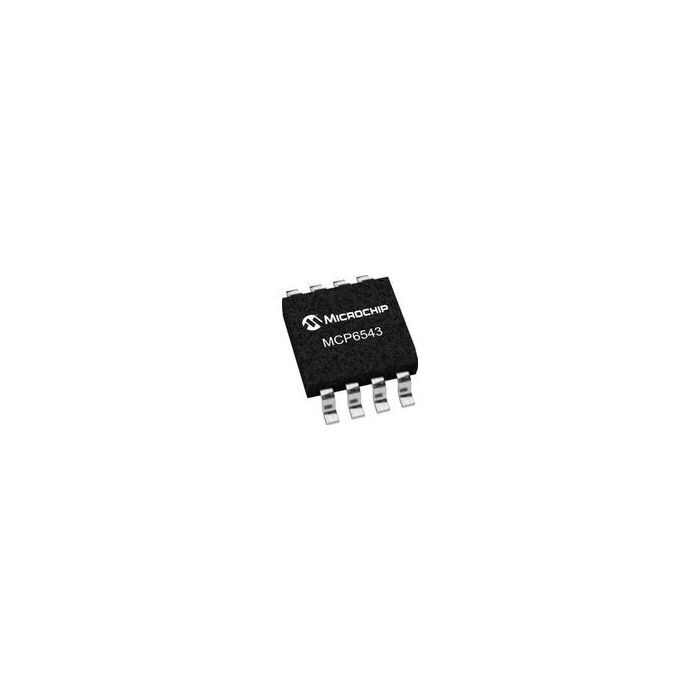

MCP6543T-E/SN
Do pobrania | Download |
---|---|
Main description | Comparator Single R-R I/O 5.5V Automotive 8-Pin SOIC N T/R |
Comparator Single R-R I/O 5.5V Automotive 8-Pin SOIC N T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 162
- Inventory 3
- PCNs 67
- GIDEP-Alerts 11
- MaskPart MCP6543%ESN
- IntroductionDate Mar 11, 2002
Parametry
- Manufacturer Type General Purpose Comparator
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) 0.000001(Typ)@5.5V
- Maximum Input Offset Voltage (mV) 7@5.5V
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) 8000
- Maximum Quiescent Current (mA) 0.001@5.5V
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.6
- Number of Channels per Chip 1
- Output Type Push-Pull
- Power Supply Type Single
- Process Technology CMOS
- Rail to Rail Rail to Rail Input/Output
- Strobe Capability No
- Supplier Temperature Grade Extended
- Typical CMRR (dB) 70
- Typical Dual Supply Voltage (V) N/R
- Typical Output Current (mA) N/A
- Typical PSRR (dB) 80
- Typical Response Time (us) N/A
- Typical Response Time Range (us) N/A
- Typical Single Supply Voltage (V) 3|5
- Typical Voltage Gain (dB) N/A
- Typical Voltage Gain Range (dB) N/A
