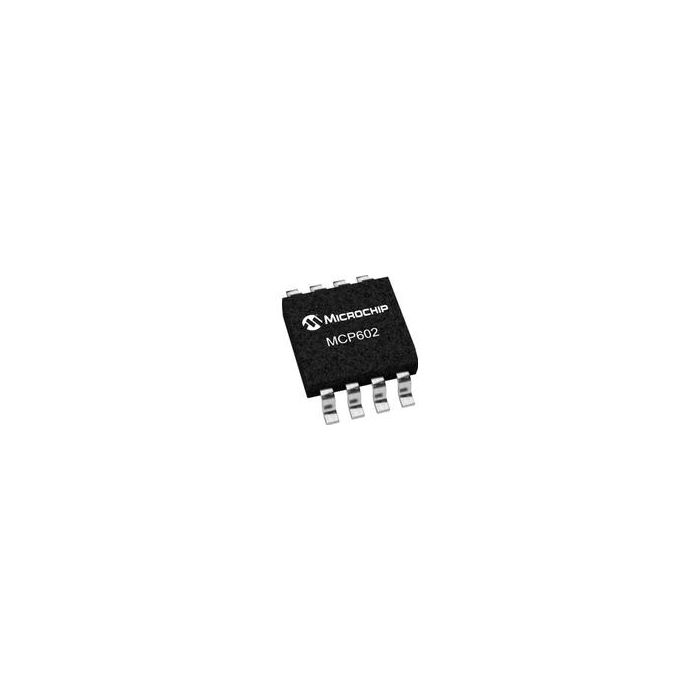

MCP602-I/SN
| Do pobrania | Download |
|---|---|
| Main description | Op Amp Dual Low Power Amplifier R-R O/P 6V Automotive 8-Pin SOIC N Tube |
Op Amp Dual Low Power Amplifier R-R O/P 6V Automotive 8-Pin SOIC N Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 838
- Inventory 12
- PCNs 69
- GIDEP-Alerts 15
- MaskPart MCP602%ISN
- IntroductionDate Jul 08, 1999
Parametry
- Manufacturer Type Low Power Amplifier
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) 0.00006@5.5V@85C
- Maximum Input Offset Current (uA) 0.000001(Typ)@5.5V
- Maximum Input Offset Voltage (mV) 2@5.5V
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 0.65@5.5V
- Maximum Single Supply Voltage (V) 6
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 6 to 9
- Minimum CMRR (dB) 75
- Minimum CMRR Range (dB) 75 to 80
- Minimum Dual Supply Voltage (V) N/R
- Minimum PSRR (dB) 80
- Minimum Single Supply Voltage (V) 2.7
- Number of Channels per Chip 2
- Output Type CMOS
- Power Supply Type Single
- Process Technology CMOS
- Rail to Rail Rail to Rail Output
- Shut Down Support No
- Supplier Temperature Grade Industrial
- Type Low Power Amplifier
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) 2.8
- Typical Input Bias Current (uA) 0.000001@5.5V
- Typical Input Noise Voltage Density (nV/rtHz) 29@5.5V
- Typical Inverting Input Current Noise Density (pA/rtHz) N/A
- Typical Noninverting Input Current Noise Density (pA/rtHz) 0.0006@5.5V
- Typical Output Current (mA) 30(Max)
- Typical Settling Time (ns) 4500
- Typical Single Supply Voltage (V) 3|5
- Typical Slew Rate (V/us) 2.3@5.5V
- Typical Voltage Gain (dB) 115
