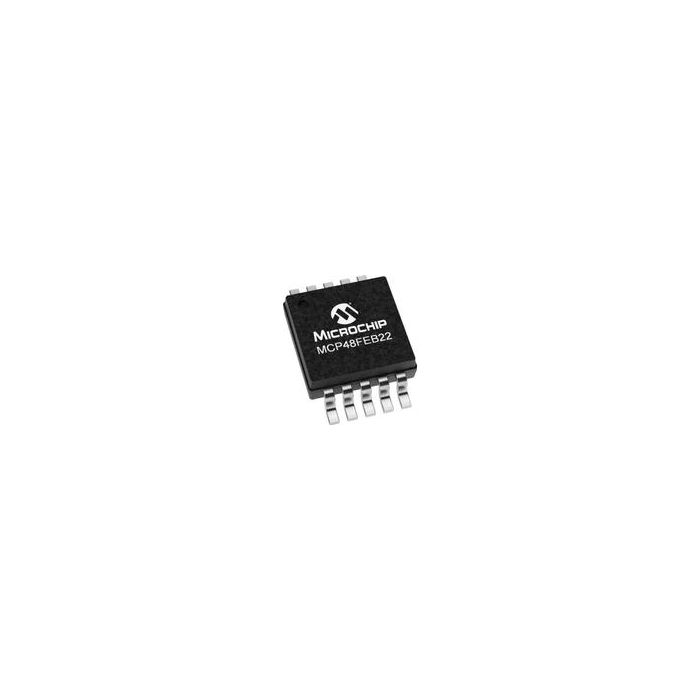

MCP48FEB22-E/UN
| Do pobrania | Download |
|---|---|
| Main description | DAC 2-CH Resistor-String 12-bit 10-Pin MSOP Tube |
DAC 2-CH Resistor-String 12-bit 10-Pin MSOP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1
- Inventory 5
- PCNs 46
- MaskPart MCP48FEB22EUN%
- IntroductionDate Dec 03, 2015
Parametry
- Architecture Resistor-String
- Conversion Rate N/A
- Converter Type Digital Trimming Potentiometer
- Digital Interface Type Serial (4-Wire, 5-Wire, SPI)
- Digital Supply Support No
- Full Scale Error 70LSB
- Integral Nonlinearity Error ±6LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Power Dissipation (mW) 490
- Maximum Settling Time (us) 7.8(Typ)
- Maximum Single Supply Voltage (V) 5.5
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.8
- Number of DAC Channels 2
- Number of Outputs per Chip 2
- Output Polarity Unipolar
- Output Type Voltage
- Power Supply Type Single
- Resolution 12bit
- Signal to Noise Ratio N/A
- Supplier Temperature Grade Extended
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 2.5|3.3|5
- Voltage Reference Internal|External|Supply
