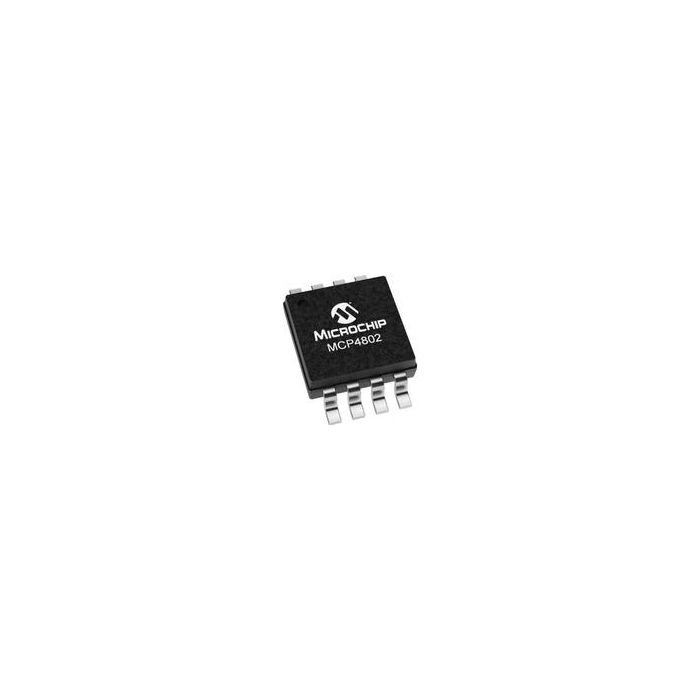

MCP4802-E/MS

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP4802-E_MS_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP4802-E/MS

DAC 2-CH Resistor-String 8-bit Automotive 8-Pin MSOP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 126
  • Inventory 8
  • PCNs 63
  • GIDEP-Alerts 14
  • MaskPart MCP4802EMS%
  • IntroductionDate Apr 11, 2010

Parametry

  • Architecture Resistor-String
  • Conversion Rate N/A
  • Converter Type General Purpose
  • Digital Interface Type Serial (3-Wire, SPI, Microwire)
  • Digital Supply Support No
  • Full Scale Error ±2%FSR
  • Integral Nonlinearity Error ±1LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Settling Time (us) 4.5(Typ)
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Storage Temperature (°C) 150
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.7
  • Minimum Storage Temperature (°C) -65
  • Number of DAC Channels 2
  • Number of Outputs per Chip 2
  • Output Polarity Unipolar
  • Output Type Voltage
  • Power Supply Type Single
  • Resolution 8bit
  • Signal to Noise Ratio N/A
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference Internal

Więcej informacji

Do pobrania Download
Main description DAC 2-CH Resistor-String 8-bit Automotive 8-Pin MSOP Tube
