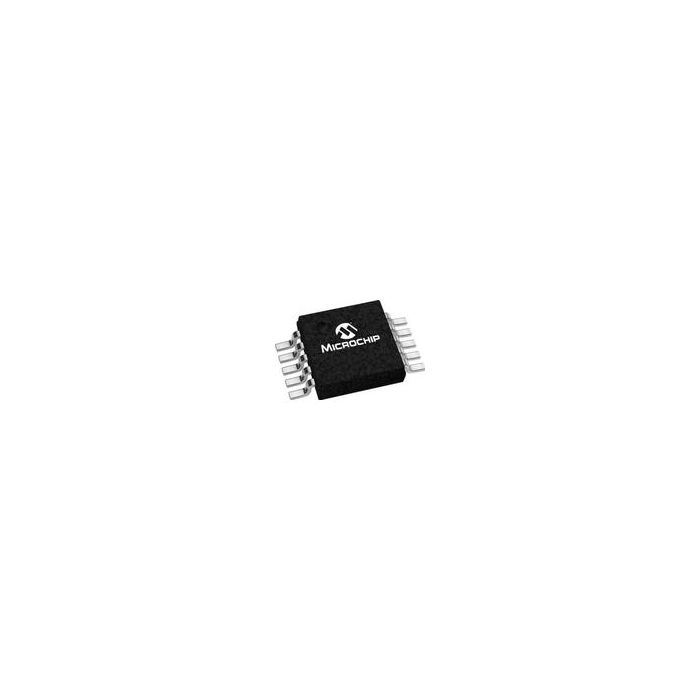

MCP47CVB11-E/UN

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP47CVB11-E_UN_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP47CVB11-E/UN

DAC 1-CH Resistor-String 10-bit 10-Pin MSOP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 232
  • Inventory 5
  • PCNs 46
  • GIDEP-Alerts 1
  • MaskPart MCP47CVB11EUN%

Parametry

  • Architecture Resistor-String
  • Conversion Rate N/A
  • Converter Type General Purpose
  • Digital Interface Type Serial (2-Wire, I2C)
  • Digital Supply Support No
  • Full Scale Error 9LSB
  • Integral Nonlinearity Error ±0.25LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) 400
  • Maximum Settling Time (us) 16(Typ)
  • Maximum Single Supply Voltage (V) 5.5
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.8
  • Number of DAC Channels 1
  • Number of Outputs per Chip 1
  • Output Polarity Unipolar
  • Output Type Voltage
  • Power Supply Type Single
  • Resolution 10bit
  • Signal to Noise Ratio N/A
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 2.5|3.3|5
  • Voltage Reference Internal|External|Supply

Więcej informacji

Do pobrania Download
Main description DAC 1-CH Resistor-String 10-bit 10-Pin MSOP Tube
