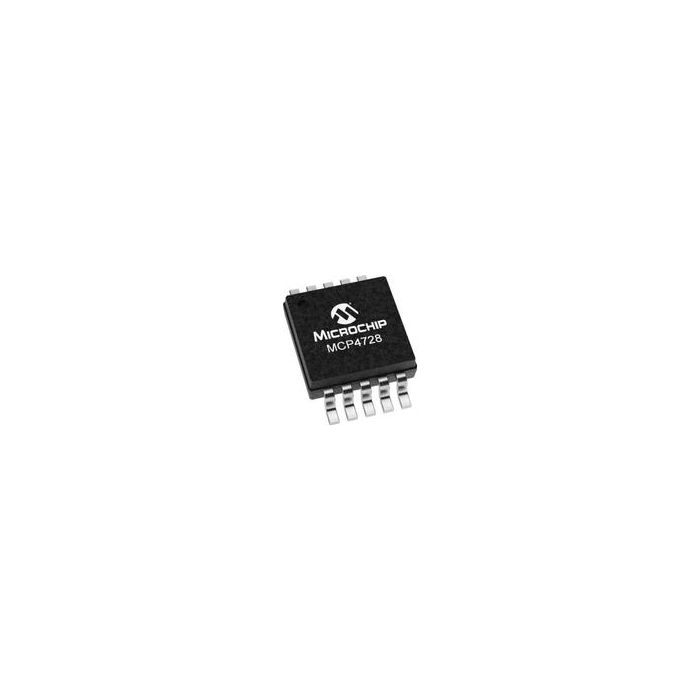

MCP4728A5T-E/UN

Więcej informacji
Do pobrania Download
Main description DAC 4-CH Resistor-String 12-bit Automotive 10-Pin MSOP T/R
DAC 4-CH Resistor-String 12-bit Automotive 10-Pin MSOP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 264
  • Inventory 1
  • PCNs 45
  • MaskPart MCP4728A5EUN%
  • IntroductionDate Jun 11, 2009

Parametry

  • Architecture Resistor-String
  • Conversion Rate N/A
  • Converter Type General Purpose
  • Digital Interface Type Serial (2-Wire, I2C)
  • Digital Supply Support No
  • Full Scale Error ±3%FSR
  • Integral Nonlinearity Error ±13LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Settling Time (us) 6(Typ)
  • Maximum Single Supply Voltage (V) 5.5
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.7
  • Number of DAC Channels 4
  • Number of Outputs per Chip 4
  • Output Polarity Unipolar
  • Output Type Voltage
  • Power Supply Type Single
  • Resolution 12bit
  • Signal to Noise Ratio N/A
  • Supplier Temperature Grade N/A
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3.3|5
  • Voltage Reference Internal|Supply
