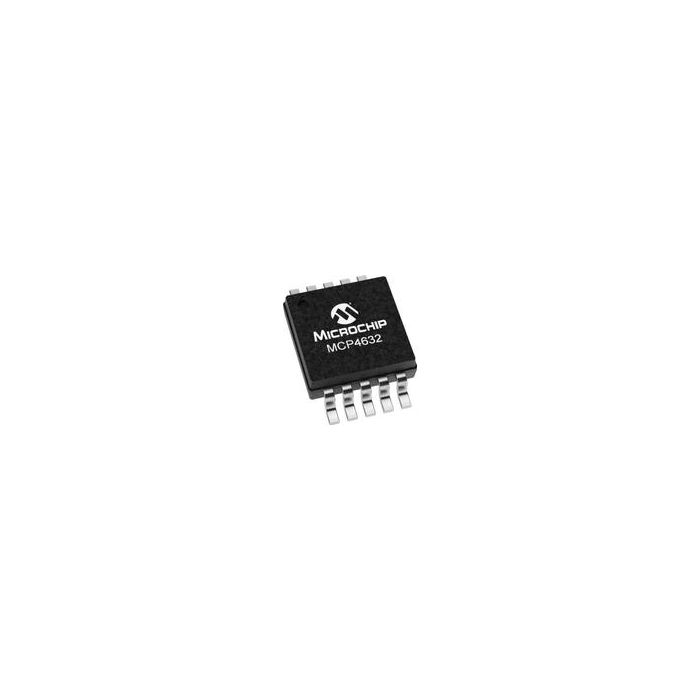

MCP4632-103E/UN
| Do pobrania | Download |
|---|---|
| Main description | Digital Potentiometer 10kOhm 128POS Volatile Linear Automotive 10-Pin MSOP Tube |
Digital Potentiometer 10kOhm 128POS Volatile Linear Automotive 10-Pin MSOP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 3
- Inventory 3
- PCNs 50
- MaskPart MCP4632103EUN%
- IntroductionDate Nov 04, 2008
Parametry
- Control Interface Serial (2-Wire, I2C)
- Digital Supply Voltage (V) N/R
- Maximum Dual Supply Voltage (V) N/R
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) 0.0025(Typ)
- Memory Type Volatile
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.8
- Number of Positions 128
- Number of Pot per Package 2
- Power Supply Type Single
- Resistance Value (kOhm) 10
- Supplier Temperature Grade Extended
- Taper Type Linear
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 2.5|3.3|5
