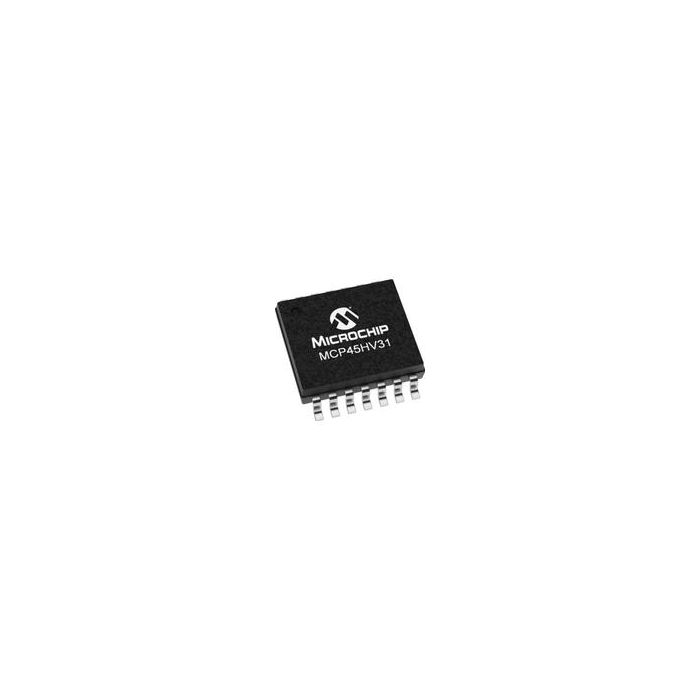

MCP45HV31-103E/ST

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP45HV31-103E_ST_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP45HV31-103E/ST

Digital Potentiometer 10kOhm 128POS Volatile 14-Pin TSSOP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 3
  • Inventory 3
  • PCNs 47
  • GIDEP-Alerts 1
  • MaskPart MCP45HV31103EST%
  • IntroductionDate Jun 17, 2014

Parametry

  • Control Interface Serial (2-Wire, I2C)
  • Digital Supply Voltage (V) 1.8 to 5.5
  • Maximum Dual Supply Voltage (V) ±18
  • Maximum Operating Temperature (°C) 125
  • Maximum Single Supply Voltage (V) 36
  • Maximum Supply Current (mA) 0.045(Typ)
  • Memory Type Volatile
  • Minimum Dual Supply Voltage (V) ±5
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 10
  • Number of Positions 128
  • Number of Pot per Package 1
  • Power Supply Type Single|Dual
  • Resistance Value (kOhm) 10
  • Supplier Temperature Grade Extended
  • Taper Type N/A
  • Typical Dual Supply Voltage (V) ±9|±12|±15
  • Typical Single Supply Voltage (V) 12|15|18|24

Więcej informacji

Do pobrania Download
Main description Digital Potentiometer 10kOhm 128POS Volatile 14-Pin TSSOP Tube
