MCP4341-103E/ST

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP4341-103E_ST_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP4341-103E/ST

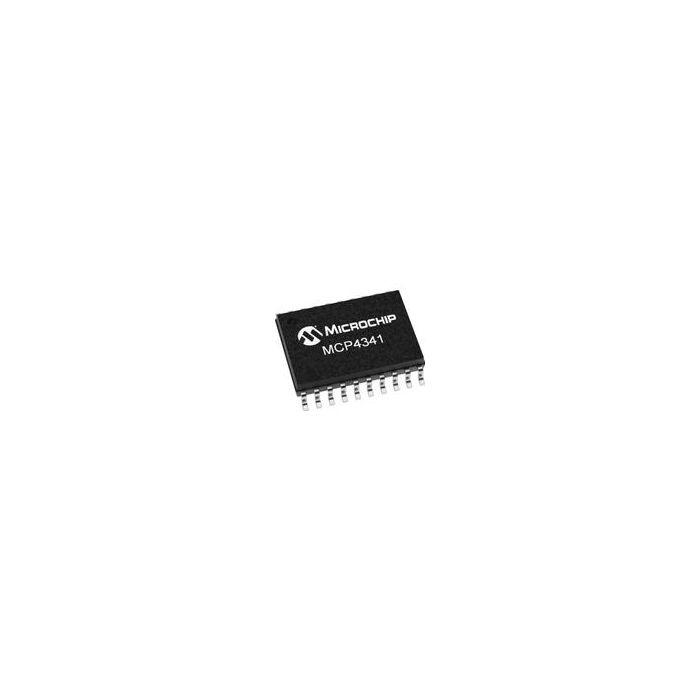

Digital Potentiometer 10kOhm 128POS Non-Volatile Linear Automotive 20-Pin TSSOP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 7
  • Inventory 3
  • PCNs 50
  • GIDEP-Alerts 1
  • MaskPart MCP4341103EST%
  • IntroductionDate Dec 16, 2009

Parametry

  • Control Interface Serial (4-Wire, SPI)
  • Digital Supply Voltage (V) N/R
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 125
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 0.55(Typ)
  • Memory Type Non-Volatile
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.8
  • Minimum Storage Temperature (°C) -65
  • Number of Positions 128
  • Number of Pot per Package 4
  • Power Supply Type Single
  • Resistance Value (kOhm) 10
  • Supplier Temperature Grade Extended
  • Taper Type Linear
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description Digital Potentiometer 10kOhm 128POS Non-Volatile Linear Automotive 20-Pin TSSOP Tube
