MCP42100-E/ST

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP42100-E_ST_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP42100-E/ST

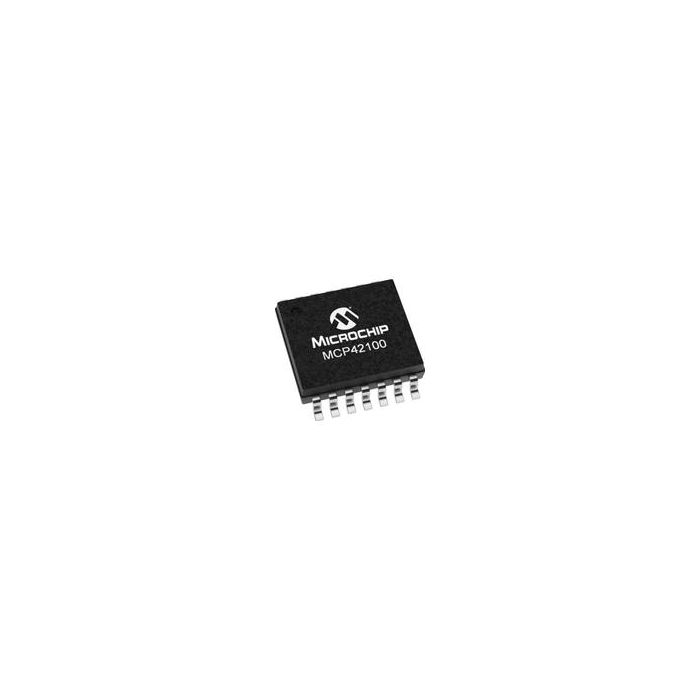

Digital Potentiometer 100kOhm 256POS Volatile Linear 14-Pin TSSOP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 60
  • Inventory 3
  • PCNs 66
  • GIDEP-Alerts 6
  • MaskPart MCP42100%EST
  • IntroductionDate Nov 07, 2000

Parametry

  • Control Interface Serial (SPI)
  • Digital Supply Voltage (V) N/R
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 125
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Supply Current (mA) 0.34(Typ)
  • Memory Type Volatile
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.7
  • Number of Positions 256
  • Number of Pot per Package 2
  • Power Supply Type Single
  • Resistance Value (kOhm) 100
  • Supplier Temperature Grade Extended
  • Taper Type Linear
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description Digital Potentiometer 100kOhm 256POS Volatile Linear 14-Pin TSSOP Tube
