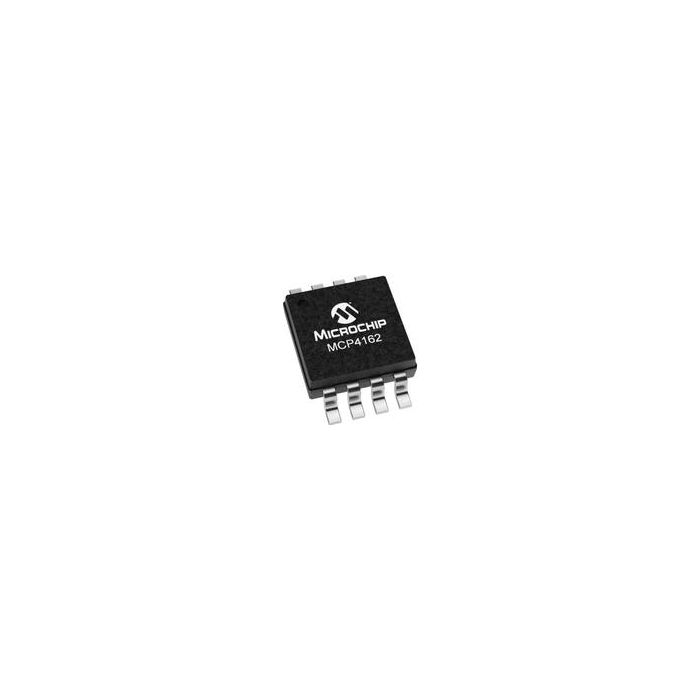

MCP4162T-103E/MS
| Do pobrania | Download |
|---|---|
| Main description | Digital Potentiometer 10kOhm 256POS Non-Volatile Linear Automotive 8-Pin MSOP T/R |
Digital Potentiometer 10kOhm 256POS Non-Volatile Linear Automotive 8-Pin MSOP T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 11
- Inventory 1
- PCNs 61
- GIDEP-Alerts 13
- MaskPart MCP4162%103EMS
- IntroductionDate Aug 31, 2007
Parametry
- Control Interface Serial (4-Wire, SPI)
- Digital Supply Voltage (V) N/R
- Maximum Dual Supply Voltage (V) N/R
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) 0.55(Typ)
- Memory Type Non-Volatile
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.8
- Number of Positions 256
- Number of Pot per Package 1
- Power Supply Type Single
- Resistance Value (kOhm) 10
- Supplier Temperature Grade Extended
- Taper Type Linear
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 2.5|3.3|5
