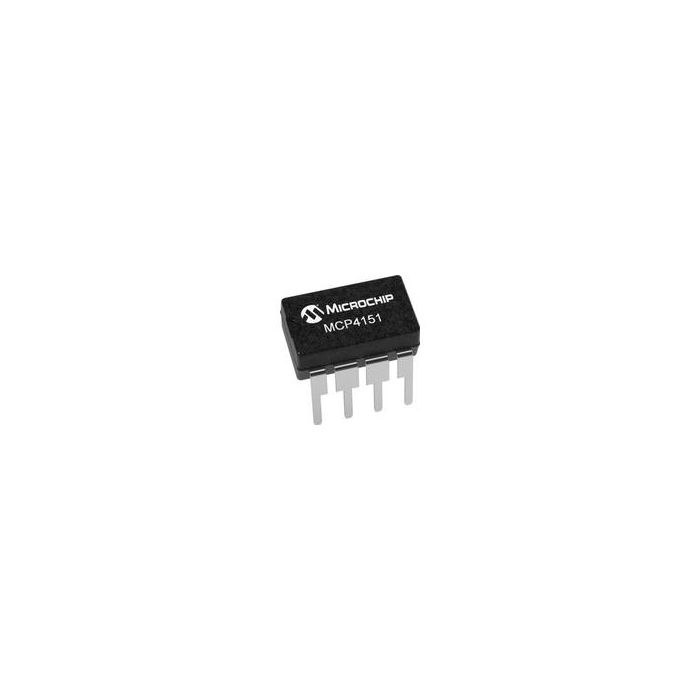

MCP4151-503E/P
| Do pobrania | Download |
|---|---|
| Main description | Digital Potentiometer 50kOhm 256POS Volatile Linear Automotive 8-Pin PDIP Tube |
Digital Potentiometer 50kOhm 256POS Volatile Linear Automotive 8-Pin PDIP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 60
- Inventory 8
- PCNs 62
- GIDEP-Alerts 7
- MaskPart MCP4151503EP%
- IntroductionDate Sep 24, 2007
Parametry
- Control Interface Serial (SPI)
- Digital Supply Voltage (V) N/R
- Maximum Dual Supply Voltage (V) N/R
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) 1
- Memory Type Volatile
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.8
- Number of Positions 256
- Number of Pot per Package 1
- Power Supply Type Single
- Resistance Value (kOhm) 50
- Supplier Temperature Grade Extended
- Taper Type Linear
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 2.5|3.3|5
