MCP41050-I/P

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP41050-I_P_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP41050-I/P

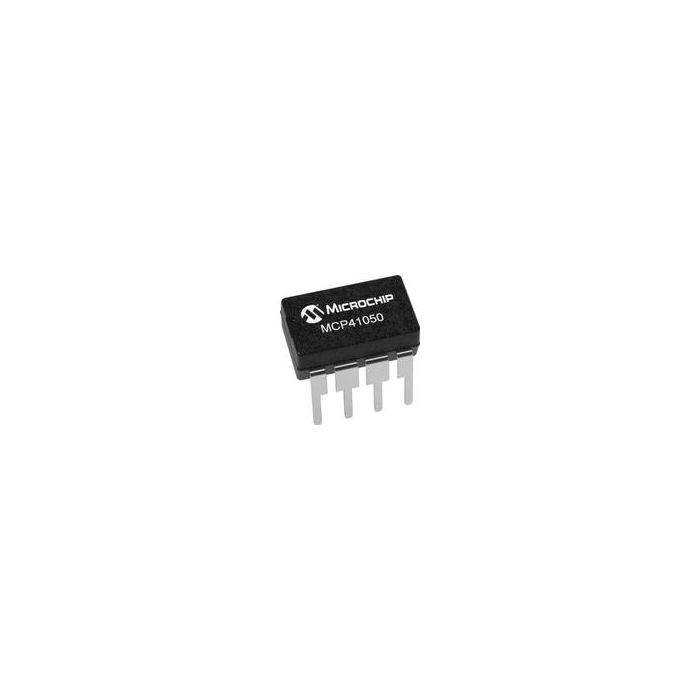

Digital Potentiometer 50kOhm 256POS Volatile Linear 8-Pin PDIP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 43
  • Inventory 9
  • PCNs 59
  • GIDEP-Alerts 7
  • MaskPart MCP41050%IP
  • IntroductionDate Sep 04, 2001

Parametry

  • Control Interface Serial (SPI)
  • Digital Supply Voltage (V) N/R
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Supply Current (mA) 0.34(Typ)
  • Memory Type Volatile
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.7
  • Number of Positions 256
  • Number of Pot per Package 1
  • Power Supply Type Single
  • Resistance Value (kOhm) 50
  • Supplier Temperature Grade Industrial
  • Taper Type Linear
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description Digital Potentiometer 50kOhm 256POS Volatile Linear 8-Pin PDIP Tube
