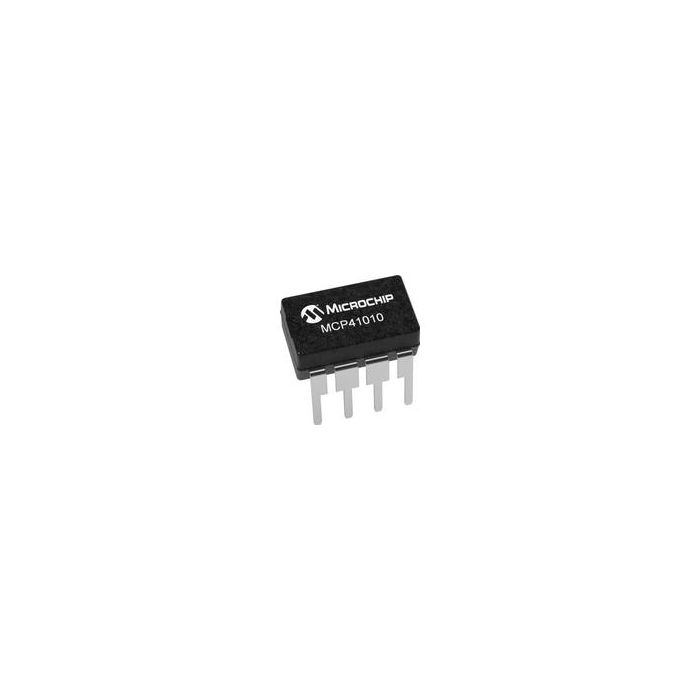

MCP41010-E/P

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP41010-E_P_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP41010-E/P

Digital Potentiometer 10kOhm 256POS Volatile Linear 8-Pin PDIP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 54
  • Inventory 9
  • PCNs 64
  • GIDEP-Alerts 7
  • MaskPart MCP41010%EP
  • IntroductionDate Nov 07, 2000

Parametry

  • Control Interface Serial (SPI)
  • Digital Supply Voltage (V) N/R
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 125
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 0.34(Typ)
  • Memory Type Volatile
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.7
  • Minimum Storage Temperature (°C) -60
  • Number of Positions 256
  • Number of Pot per Package 1
  • Power Supply Type Single
  • Resistance Value (kOhm) 10
  • Supplier Temperature Grade Extended
  • Taper Type Linear
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Digital Potentiometer 10kOhm 256POS Volatile Linear 8-Pin PDIP Tube
