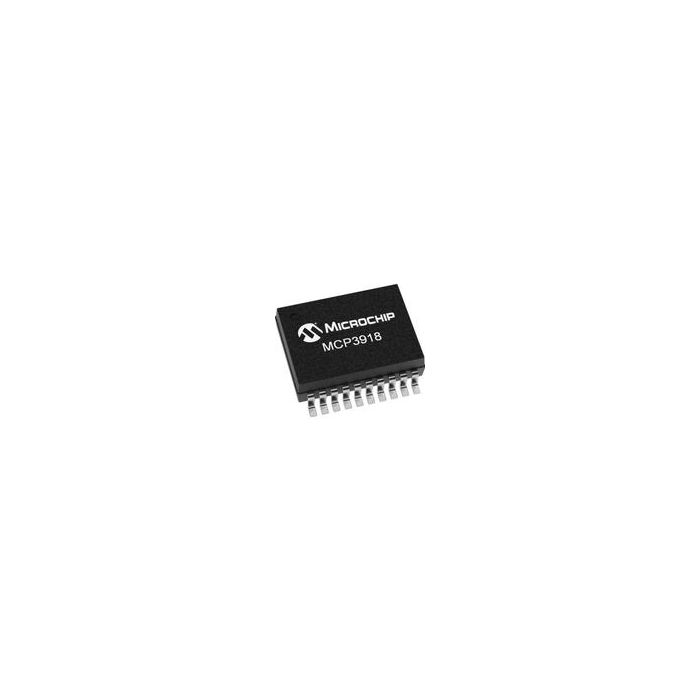

MCP3918A1-E/SS

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP3918A1-E_SS_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP3918A1-E/SS

AFE General Purpose 1 ADC 24bit 3.3V Automotive Medical 20-Pin SSOP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 6
  • Inventory 6
  • PCNs 55
  • GIDEP-Alerts 6
  • MaskPart MCP3918A1ESS%
  • IntroductionDate May 13, 2014

Parametry

  • Category General Purpose
  • Interface Type Serial (2-Wire)
  • Maximum Input Voltage Range N/A
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 125
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of ADC Inputs 1
  • Number of ADCs 1
  • Number of Channels per Chip 1
  • Power Supply Type Analog|Digital
  • Resolution (bit) 24
  • Sampling Rate (ksps) 125(Max)
  • Supplier Temperature Grade Extended
  • Type General Purpose
  • Typical Operating Supply Voltage (V) 3.3
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description AFE General Purpose 1 ADC 24bit 3.3V Automotive Medical 20-Pin SSOP Tube
