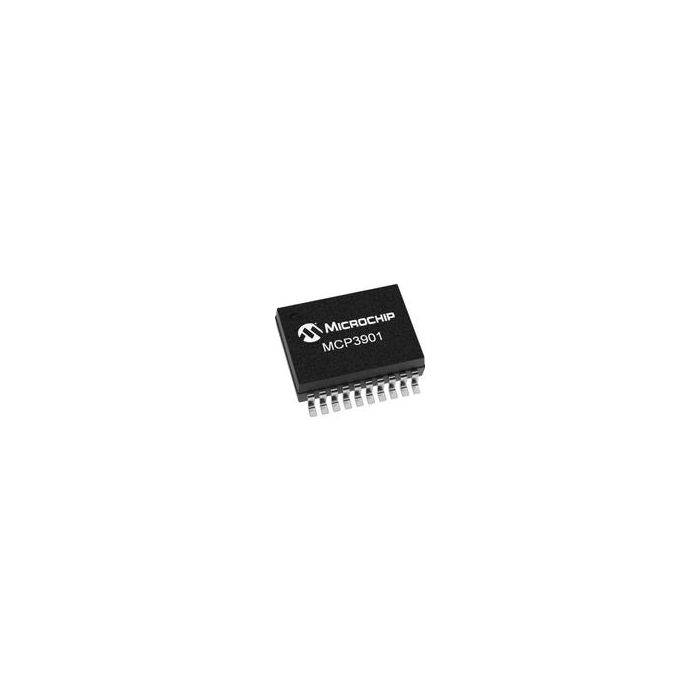

MCP3901A0-I/SS

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP3901A0-I_SS_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP3901A0-I/SS

AFE General Purpose 2 ADC 16bit 3.6V/5V 20-Pin SSOP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 6
  • Inventory 9
  • PCNs 59
  • GIDEP-Alerts 8
  • MaskPart MCP3901A0IS%
  • IntroductionDate Sep 24, 2009

Parametry

  • Category General Purpose
  • Interface Type Serial (SPI)
  • Maximum Input Voltage Range 1V
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2.7|4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of ADC Inputs 2
  • Number of ADCs 2
  • Number of Channels per Chip 2
  • Power Supply Type Analog|Digital
  • Resolution (bit) 16
  • Sampling Rate (ksps) 64
  • Supplier Temperature Grade Industrial
  • Type General Purpose
  • Typical Operating Supply Voltage (V) 3.6|5
  • Typical Supply Current (mA) 1.2|3.8

Więcej informacji

Do pobrania Download
Main description AFE General Purpose 2 ADC 16bit 3.6V/5V 20-Pin SSOP Tube
