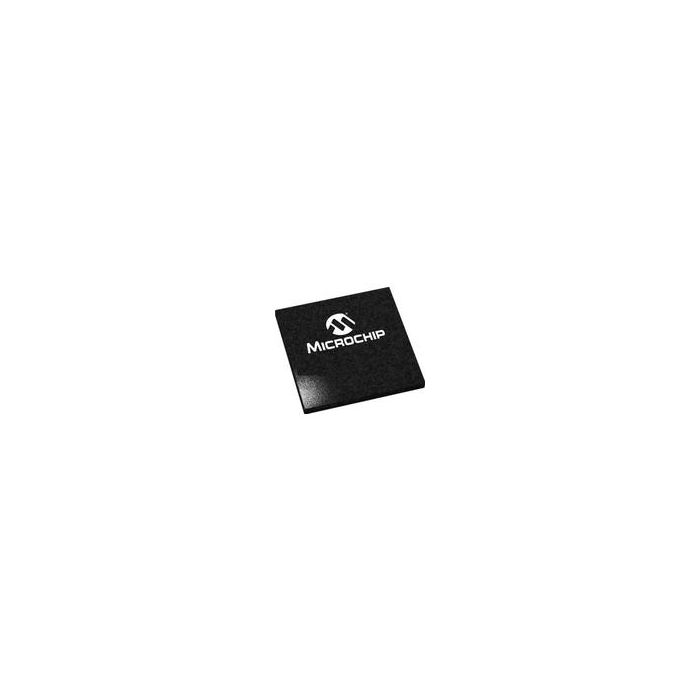

MCP37D20-200I/TL

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP37D20-200I_TL_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP37D20-200I/TL

1-Channel Single ADC Pipelined 200Msps 14-bit Parallel CMOS/Serial LVDS 124-Pin VTLA EP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 2
  • PCNs 47
  • MaskPart MCP37D20200ITL%
  • IntroductionDate Apr 29, 2015

Parametry

  • Architecture Pipelined
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±0.4LSB(Typ)
  • Digital Interface Type Parallel CMOS|Serial LVDS
  • Digital Supply Support Yes
  • Full Scale Error ±0.5%FSR(Typ)
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage 0.9Vp-p/1.8Vp-p
  • Integral Nonlinearity Error ±1.5LSB(Typ)
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Single Supply Voltage (V) 1.26/1.89
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.14/1.71
  • No Missing Codes (bit) 14
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage N/A
  • Resolution 14bit
  • Sample and Hold Yes
  • Sampling Rate 200Msps
  • Signal to Noise Ratio 67.8dBFS(Typ)
  • Single-Ended Input No
  • Supplier Temperature Grade Industrial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 367
  • Typical Single Supply Voltage (V) 1.2/1.8
  • Voltage Reference Internal|External
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC Pipelined 200Msps 14-bit Parallel CMOS/Serial LVDS 124-Pin VTLA EP Tube
