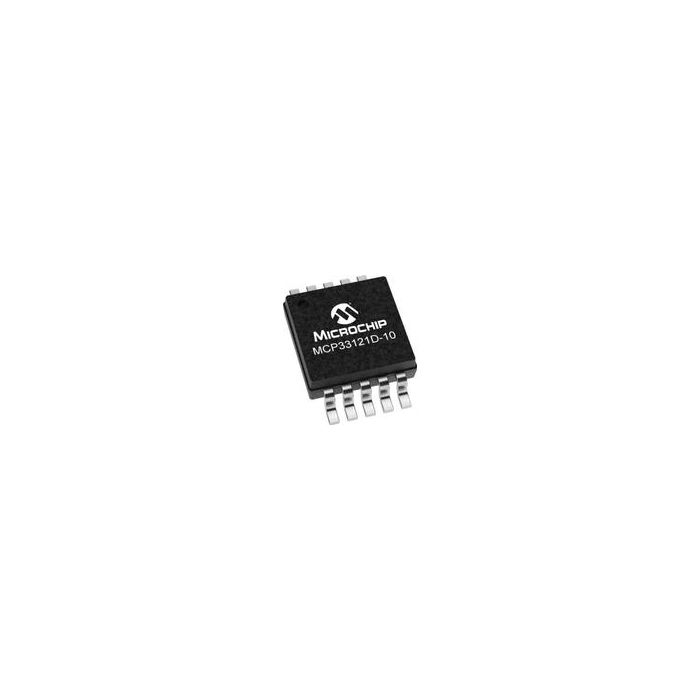

MCP33121D-10-I/MS

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP33121D-10-I_MS_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP33121D-10-I/MS

1-Channel Single ADC SAR 1Msps 14-bit Serial 10-Pin MSOP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 169
  • Inventory 6
  • PCNs 48
  • GIDEP-Alerts 2
  • MaskPart MCP33121D10IMS%

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±0.8LSB
  • Digital Interface Type Serial (3-Wire, SPI)
  • Digital Supply Support No
  • Full Scale Error ±0.5LSB(Typ)
  • Input Signal Type Pseudo-Differential|Differential
  • Input Type Voltage
  • Input Voltage ±5.1V
  • Integral Nonlinearity Error ±1.5LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Single Supply Voltage (V) 1.9
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.7
  • No Missing Codes (bit) 14
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Bipolar
  • Resolution 14bit
  • Sample and Hold Yes
  • Sampling Rate 1Msps
  • Signal to Noise Ratio 85.2dBFS(Typ)
  • Single-Ended Input No
  • Supplier Temperature Grade Industrial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 6.2
  • Typical Single Supply Voltage (V) 1.8
  • Voltage Reference External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC SAR 1Msps 14-bit Serial 10-Pin MSOP Tube
